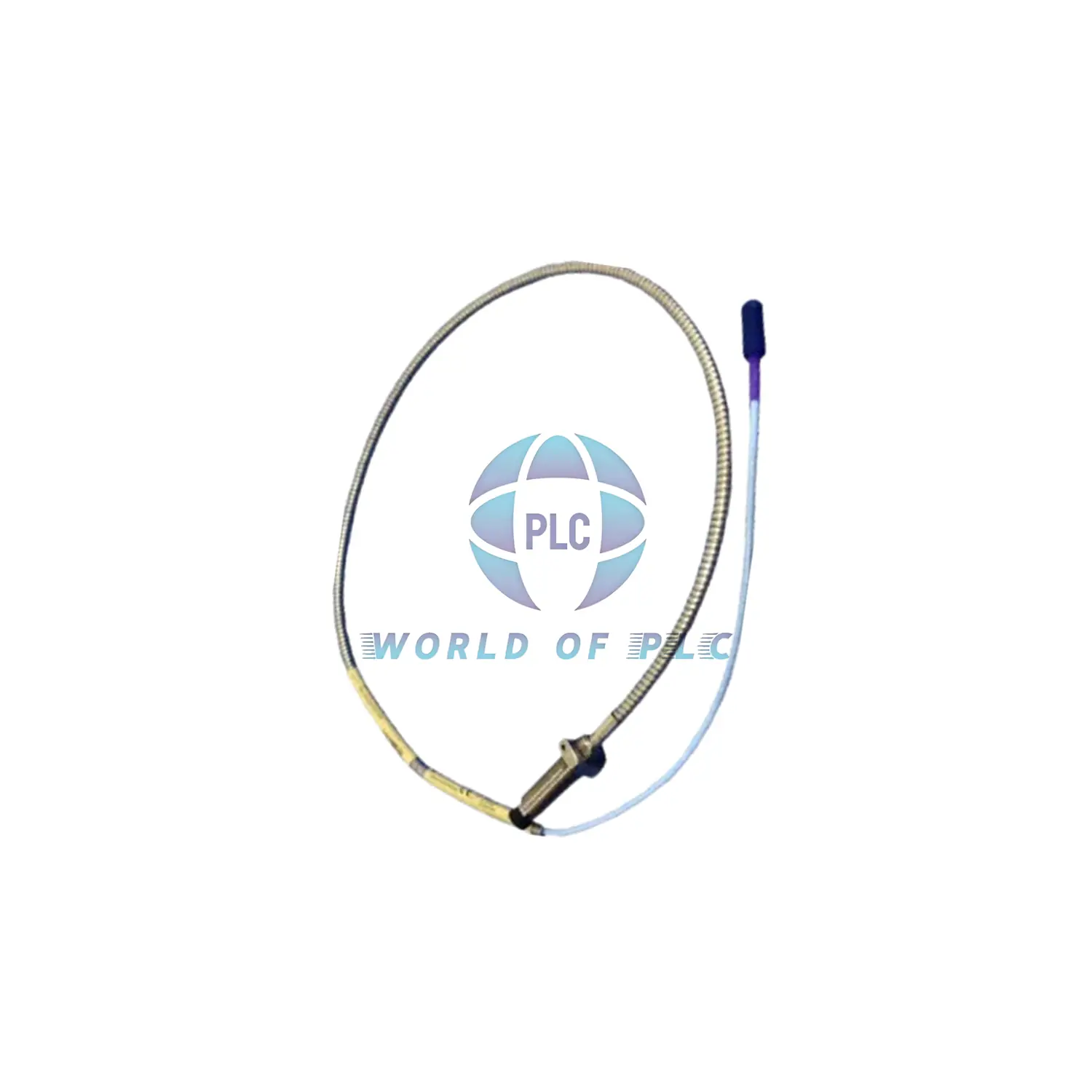

330702-00-24-90-12-00 | Bently Nevada 11 mm Proximity Probe

Bently Nevada 330702-00-24-90-12-00 Proximity Probe – Industrial Grade Performance

Premium Features at a Glance

• ✔ 9-meter FluidLoc armored cable for wet/oily environments
• ✔ Military-grade 304 stainless steel housing
• ✔ Extreme temperature range (-51°C to +177°C)
• ✔ ClickLoc connector for secure, tool-free installation
• ✔ 1/2-20 UNF threaded design for easy mounting

Complete Model Decoder

• 330702 → Base 11mm probe model
• 00 → No special certifications
• 24 → 2.4″ (61mm) case length
• 90 → 9m (29.5ft) cable length
• 12 → FluidLoc cable + ClickLoc connector
• 00 → Standard configuration

Technical Excellence

• Electrical: 8.5Ω ±1.1Ω center-to-outer conductor resistance
• Mechanical: 15.2 N•m recommended installation torque
• Durability: 25.4mm minimum bend radius
• Precision: PPS tip material for accurate readings
• Reliability: Viton O-ring pressure seal
• Compatibility: 75Ω triaxial FEP-insulated cable

Smart Installation Guide

• ▶ Max thread engagement: 0.750″ (19mm)
• ▶ Avoid temperatures below -34°C (-30°F)
• ▶ Hand-tighten connectors only (0.565 N•m max)
• ▶ Allow proper cable slack during installation

Order & Protection

• 🚚 Worldwide shipping via FedEx/UPS/DHL
• 🛡️ Full 12-month replacement guarantee
• 🇺🇸 Proudly manufactured in USA
• ⚖️ Lightweight: Only 0.17kg (0.37lbs)

Expert Answers

• Q: How does FluidLoc differ from standard cables?
  A: FluidLoc resists oil penetration 3x better than standard cables.
• Q: What’s the probe’s expected service life?
  A: Typically 5-7 years in normal operating conditions.
• Q: Can I use this in explosive environments?
  A: Only with proper hazardous area certifications (not included).
• Q: What maintenance does this probe require?
  A: Just periodic visual inspections for cable damage.
• Q: Is calibration required after installation?
  A: Yes, always calibrate with matching proximitor.
