330104-10-13-05-02-05 – With Armor | 3300 XL 8mm Proximity Probe

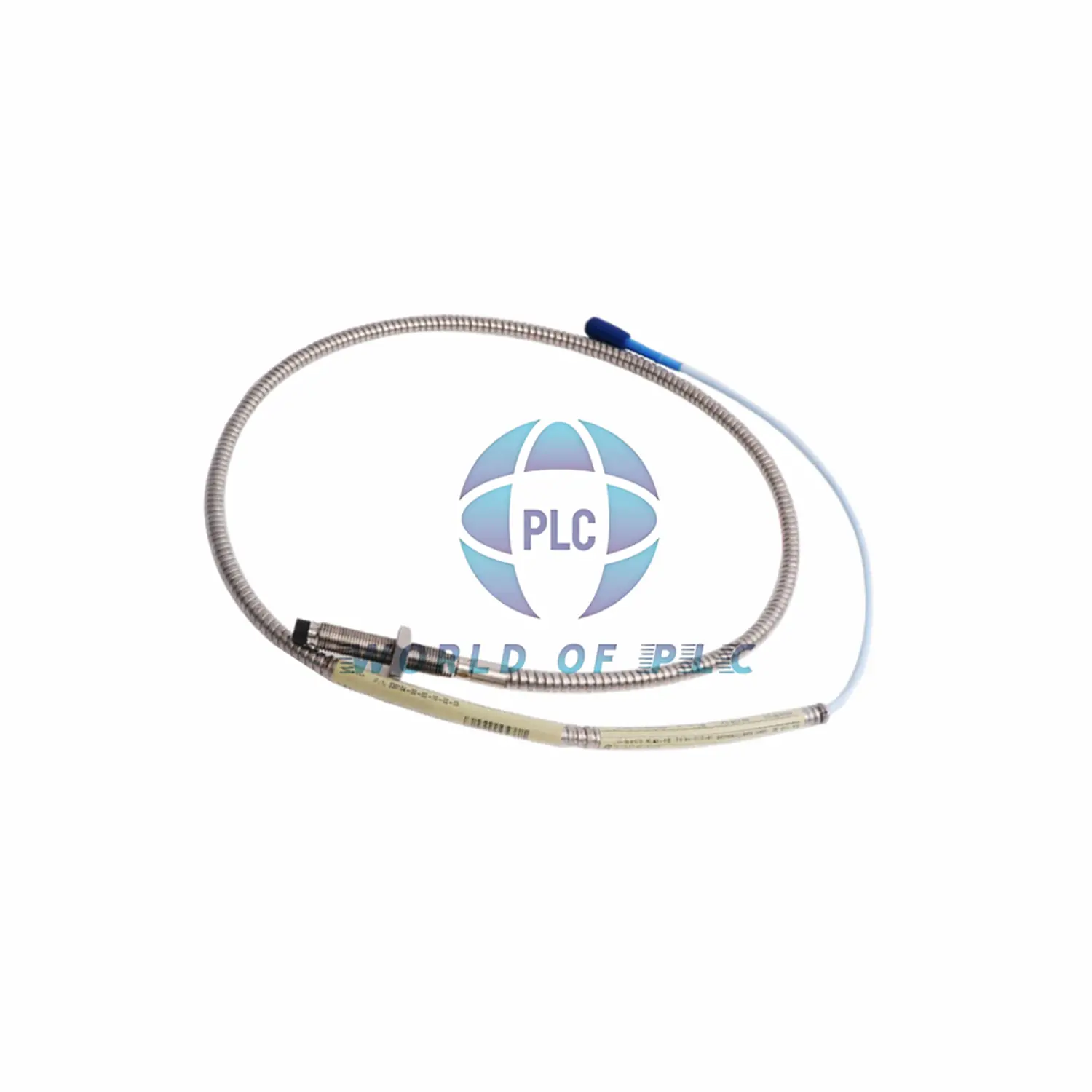

Bently Nevada 330104-10-13-05-02-05 3300 XL 8mm Proximity Probe

Model Suffix Breakdown

• Unthreaded Length: 10=100mm
• Case Length: 13=130mm
• Total Length: 05=0.5m (1.6ft)
• Connector: 02=Mini Coaxial ClickLoc
• Approvals: 05=CSA/ATEX/IECEx

Key Technical Specs

• Probe Resistance: 7.45Ω ±0.5Ω (0.5m cable)
• Linear Range: 0.25-2.5mm (10-100mils)
• Accuracy: ±0.5% FS
• Output Signal: -2V to -22V DC
• Operating Temp: -40°C to +120°C
• Max Pressure: 1000psi (probe tip seal)
• Frequency Response: 0-10kHz

Installation Guide

1. Use AISI 4140 steel target for calibration
2. Set initial gap at 1.27mm (50mils)
3. Ensure power supply: -23V to -26V DC
4. Max cable length: 9m (with extension)

Compatibility

Works with: 3300-series 5mm probes, 3300 XL 8mm systems, standard proximity monitors. Not compatible with non-4140 steel targets.

Package Contents

• 1x 330104-10-13-05-02-05 Probe
• 1x 0.5m ClickLoc Cable
• Mounting hardware
• User manual

Shipping Info

Available via Fedex/UPS/DHL. In-stock for immediate dispatch.
