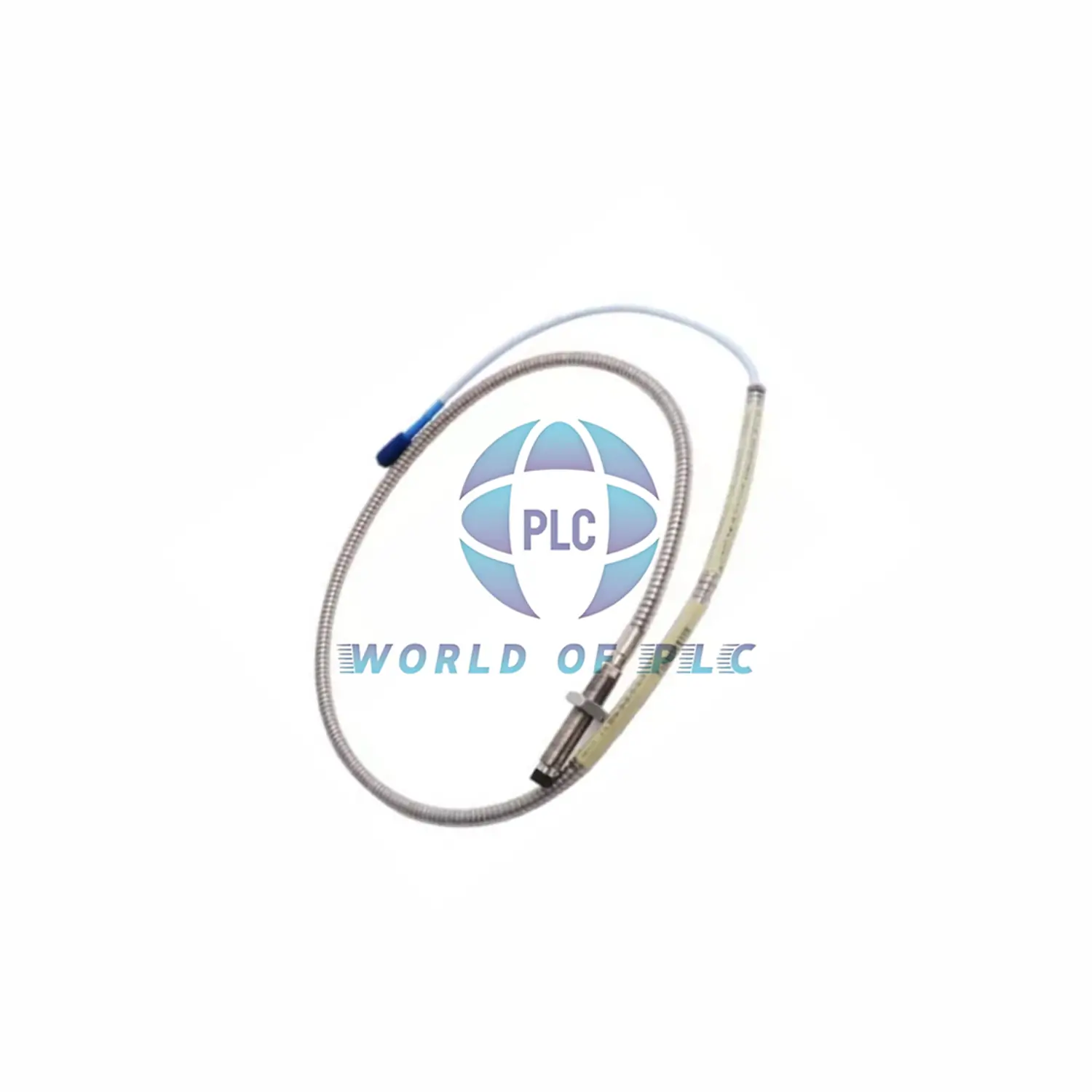

Bently Nevada 330104-04-10-10-02-00 3300 XL 8 mm Proximity Probe
Model Code Breakdown
- 330104: 3300 XL 8 mm Proximity Probe
- 04: 40 mm Unthreaded Length
- 10: 100 mm Overall Case Length
- 10: 1.0 Meter Total Length
- 02: Miniature Coaxial ClickLoc Connector, Standard Cable
- 00: No Agency Approval Required
Key Technical Specifications
- Measurement Range: Up to 2 mm typical with linear output
- Accuracy: System accuracy ±0.076 mm when using all 3300 XL components
- Output Signal: Voltage proportional to distance
- Probe Resistance: 7.59 ± 0.50 Ohms at 1.0 m length
- Power Supply: -23 to -26 VDC
- Output Resistance: 50 Ohms
- Sensitivity: Less than 2 mV change per volt input
Materials and Construction
- Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: Stainless Steel AISI 303 or 304
- Sealing: Viton O-ring, designed to seal pressure differential
Operating Environment
- Temperature: +18°C to +27°C (64°F to 80°F)
- Altitude: Up to 2000 meters
- Compatible Target: AISI 4140 steel
Installation Guidelines
- Use with 3300 XL Proximitor Sensor and matching extension cable
- Gap probe at 1.27 mm (50 mils) for best performance
- Ensure target material matches calibration specifications
Compatibility
- Compatible with 3300 XL Extension Cables
- Works with 3300 XL Proximitor Sensors
- Only for use with standard -24 VDC systems
Packaging List
- 1 × Bently Nevada 330104-04-10-10-02-00 Probe
- 1 × Protective Cap
- 1 × Installation Guide
- Note: No certificate included
Warranty
- 12 months from the date of shipment
