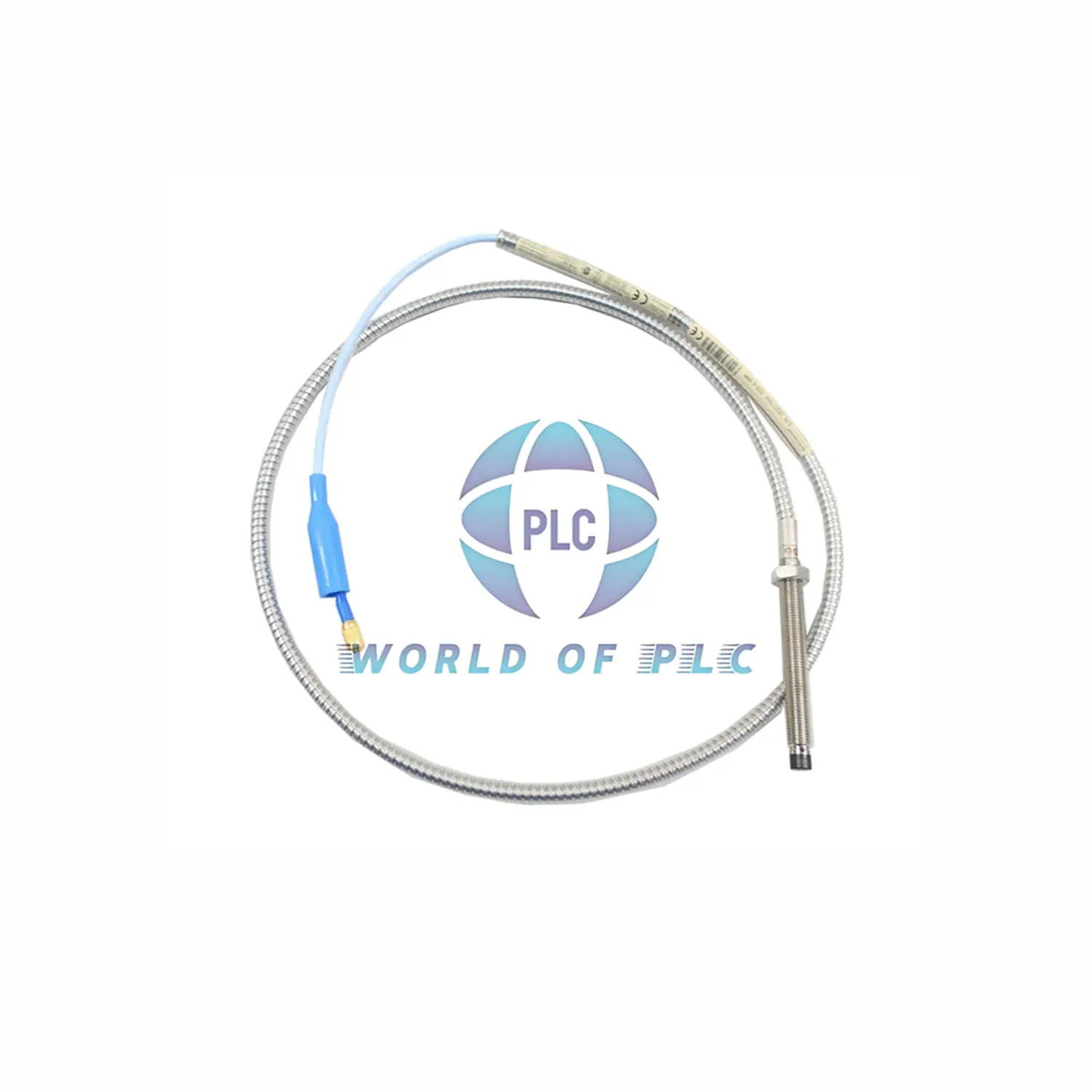

Bently Nevada 330104-01-05-05-02-CN 3300 XL 8 mm Proximity Probe
Product Overview
The Bently Nevada 330104-01-05-05-02-CN is a reliable 8 mm proximity probe used in non-contact vibration and position sensing systems. It features a 10 mm unthreaded tip, 50 mm overall case length, and a 0.5 meter armored cable with a miniature ClickLoc connector. Built for precision monitoring in rotating machinery.
Key Technical Specifications
- Measurement Range: Up to 2 mm
- Accuracy: System-calibrated with AISI 4140 steel
- Output: Analog voltage proportional to gap
- Power Supply: -17.5 Vdc to -26 Vdc
- Current Draw: Max 12 mA
- Output Resistance: 50 Ohms
- Operating Temperature: +18°C to +27°C
- Altitude Limit: 2000 meters
- Probe Resistance: 7.45 ± 0.50 Ohms (at 0.5 meter)
Complete Model Breakdown
- 330104: 3300 XL 8 mm Probe
- 01: 10 mm unthreaded length
- 05: 50 mm overall case length
- 05: 0.5 meter cable length
- 02: Miniature coaxial ClickLoc connector, standard cable
- CN: Country-Specific Approval
Packaging Contents
- 1 x 330104-01-05-05-02-CN Probe with armor
- Pre-installed standard coaxial cable
- Quick install reference sheet
Shipping and Warranty
- Shipping Methods: FedEx, UPS, DHL
- Fast Handling: In-stock or ships in 1–2 business days
- Warranty Period: 12 months replacement coverage
