330104-00-15-10-01-05 | 3300 XL 8mm Proximity Probe – With Armor

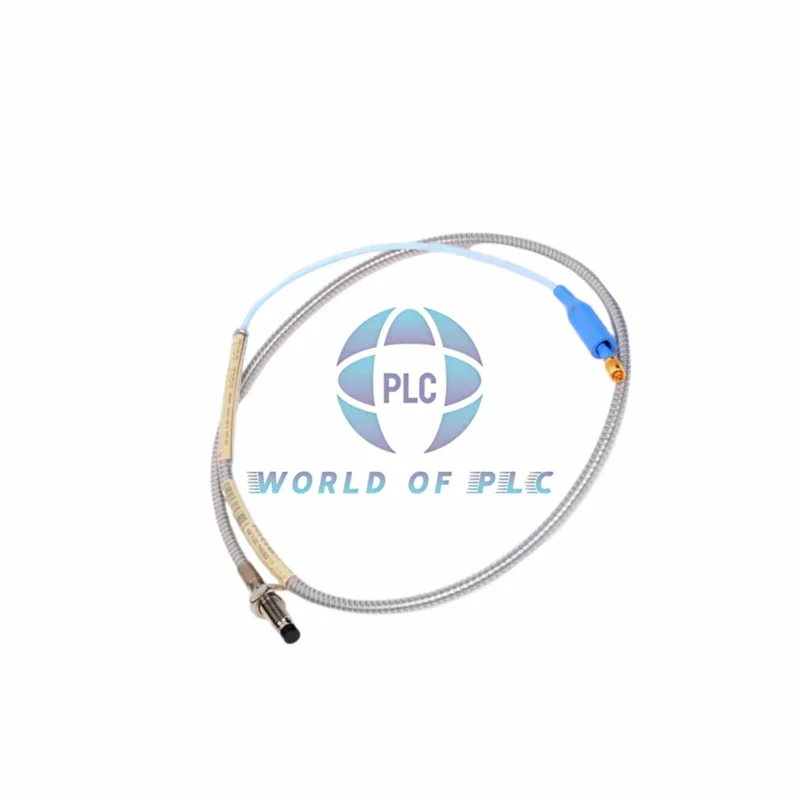

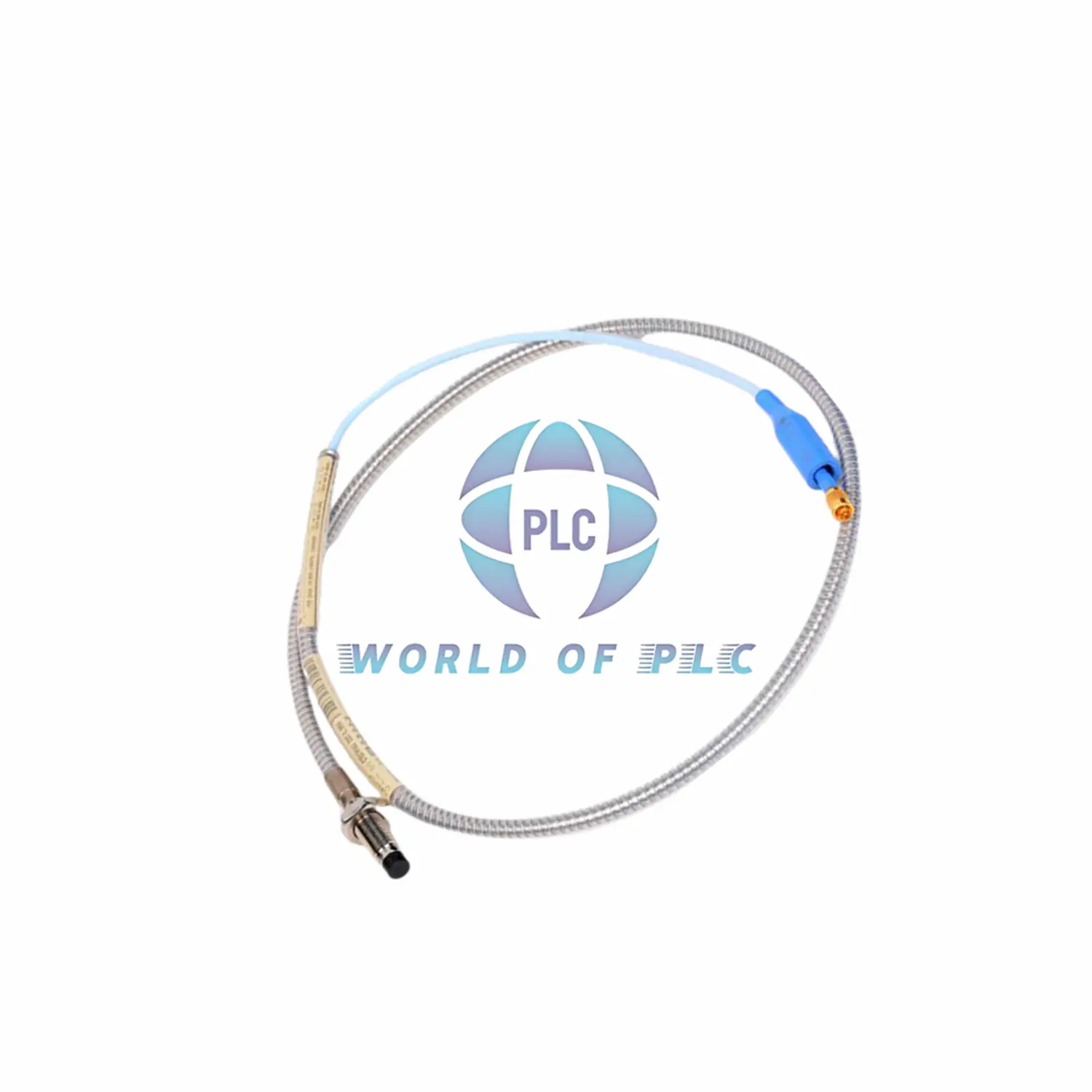

Bently Nevada 330104-00-15-10-01-05 3300 XL 8 mm Proximity Probe

Product Overview

This Bently Nevada 330104-00-15-10-01-05 probe is a rugged 8 mm proximity sensor with armored cable. It is made in the USA and designed for heavy industrial use. It offers a longer 150 mm case length for improved mounting flexibility.

Technical Specifications

• Measurement Range: ±2 mm typical with AISI 4140 steel target
• Accuracy: High repeatability at a 1.27 mm gap
• Output Signal: Voltage proportional to distance
• Operating Temperature: Probe withstands -35°C to +177°C
• Power Supply: -17.5 Vdc to -26 Vdc, max 12 mA consumption
• Nominal DC Resistance (1.0 m cable): 7.59 Ω ± 0.50
• Output Resistance: 50 Ω
• Connector Type: Miniature coaxial ClickLoc with protector
• Approvals: CSA, ATEX, IECEx certified

Package Contents

• 1 × 330104-00-15-10-01-05 probe with armored cable
• Connector protector
• No certificate included

Warranty and Shipping

• 12-month warranty from date of delivery
• Ships via FedEx, UPS, or DHL

Model Code Details

• 330104: 3300 XL 8 mm Probe, M10 x 1 thread, armored
• 00: Unthreaded length 0 mm
• 15: Overall case length 150 mm
• 10: Total probe and cable length 1.0 meter (3.3 feet)
• 01: Miniature coaxial ClickLoc connector with protector and standard cable
• 05: CSA, ATEX, IECEx approvals
