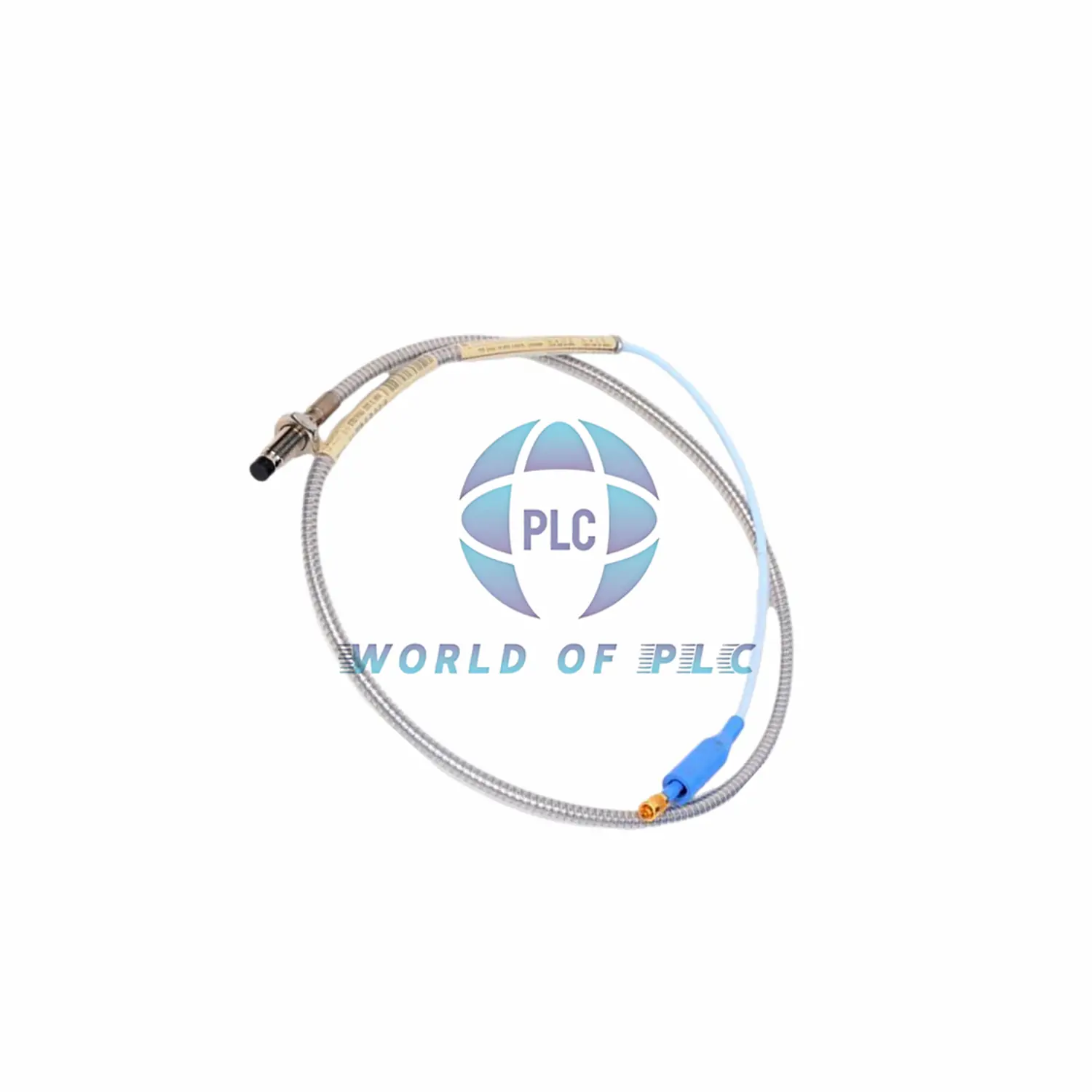

Bently Nevada 330104-05-11-90-11-00 – 3300 XL 8 mm Proximity Probe
Product Overview
Made in the USA, the Bently Nevada 330104-05-11-90-11-00 proximity probe is part of the trusted 3300 XL 8 mm series. This model includes a 50 mm unthreaded tip, 110 mm case length, and a long 9.0-meter armored FluidLoc cable with ClickLoc connector and protector. Designed for durability and precision in demanding environments.
Technical Parameters
- Measurement Range: 2 mm linear range typical
- Accuracy: ±0.08 mm over calibrated range
- Output Signal: Voltage proportional to distance
- Output Resistance: 50 ohms
- Power Supply: -17.5 Vdc to -26 Vdc
- Operating Temperature: -55°C to +232°C (varies by classification)
- Nominal Probe Resistance (9.0 m): 9.87 ± 0.50 ohms
- Case Material: Stainless Steel (AISI 303 or 304)
- Tip Material: PPS (Polyphenylene sulfide)
- Sealing: Viton O-ring pressure seal
Suffix Breakdown
- 330104 – Base Part: 3300 XL 8 mm Probe
- 05 – Unthreaded Length: 50 mm
- 11 – Case Length: 110 mm
- 90 – Total Cable Length: 9.0 meters
- 11 – Connector: Miniature ClickLoc with protector, FluidLoc cable
- 00 – Agency Approval: Not required
Certifications & Approvals
- Certified for use in hazardous zones: Class I Zone 0 and Zone 2, Division 2
- Explosion-proof when installed with zener barriers or galvanic isolators
Temperature Ratings
- For Zone Ga and Gc: T1 to T5, up to +232°C ambient
- For Zone Dc: T2 to T6, depending on installation
Installation Guide
- Mount using standard M10 x 1 thread
- Use with 3300 XL extension cable and Proximitor Sensor for full system
- Recommended target material: AISI 4140 steel
- Gap setting: 1.27 mm (50 mils) for optimum results
Compatibility
- Compatible with all 3300 XL series Proximitor sensors
- Supports 3300 XL extension cables for long runs
- Designed for seamless use in Bently Nevada vibration monitoring systems
Package Contents
- 1x Bently Nevada 330104-05-11-90-11-00 Proximity Probe
- 12-month warranty included
Shipping
- Ships via FedEx, UPS, or DHL
- Fast global delivery available
