Bently Nevada 330104-00-03-20-02-CN 3300 XL 8 mm Proximity Probe
Product Overview

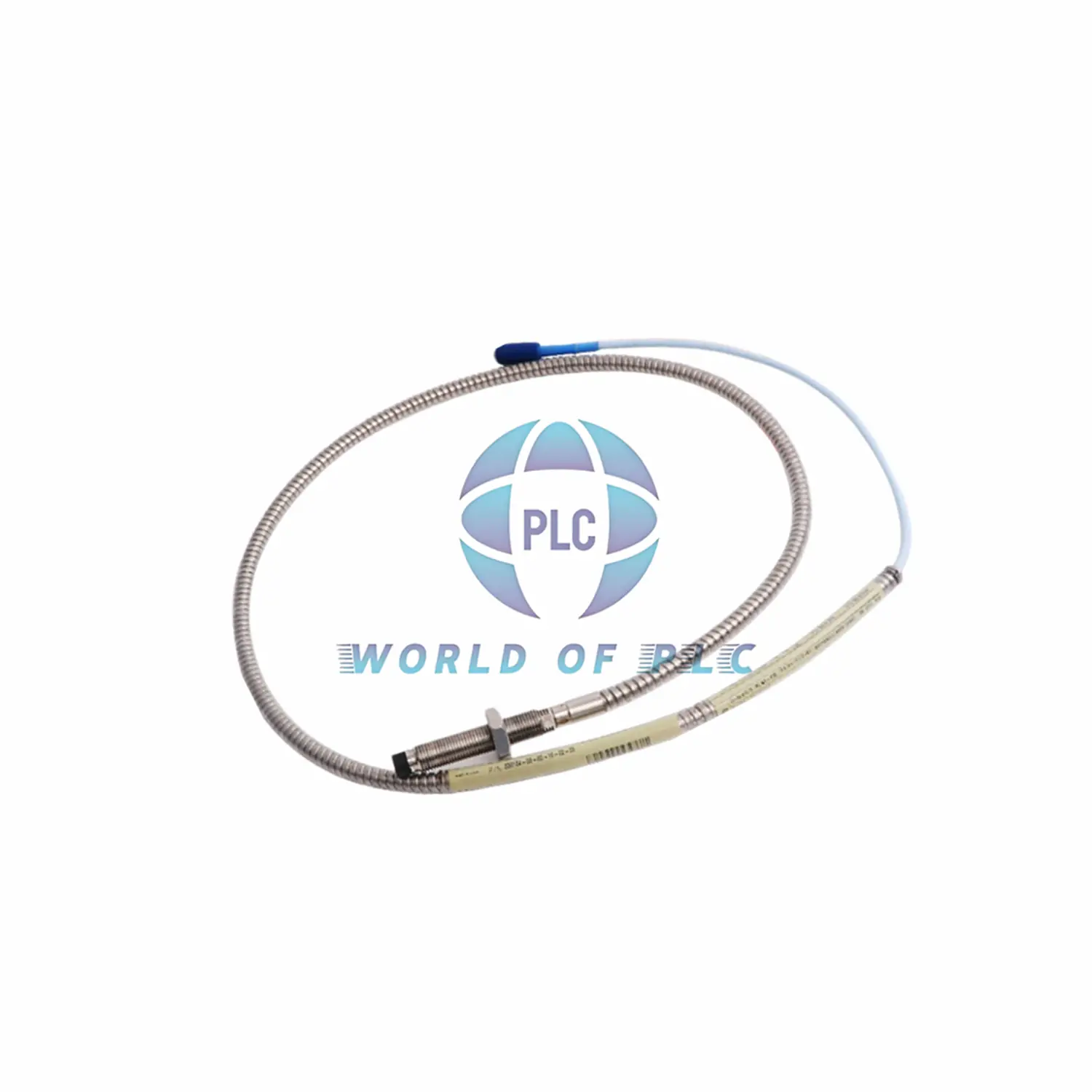

The Bently Nevada 330104-00-03-20-02-CN is an 8 mm proximity probe designed for critical machine monitoring. It includes M10 x 1 thread and armored cable. Built to work reliably in demanding environments like turbines, compressors, and pumps.
Full Model Breakdown
- Base Model: 330104 – 3300 XL 8 mm Probe
- Unthreaded Length (00): 0 mm
- Overall Case Length (03): 30 mm
- Total Cable Length (20): 2.0 meters (6.6 ft)
- Connector Type (02): Miniature coaxial ClickLoc, standard cable
- Agency Approval (CN): Country Specific
Key Technical Specifications
- DC Resistance: 9.87 ± 0.50 Ω
- Power Supply: -17.5 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- Sensitivity Drift: Less than 2 mV per volt
- Temperature Range: -55°C to +232°C (varies by classification)
- Pressure Seal: Differential pressure sealed with Viton O-ring
Environmental Ratings
- Ingress Protection: High resistance to oil, dust, and moisture
- Hazardous Area Approval: Class I, Div 2; Zone 0/2 safe for explosive gases
- Material: Tip – PPS; Case – AISI 303/304 Stainless Steel
Installation Guide
- Ensure clean contact with AISI 4140 steel target
- Recommended gap: 1.27 mm (50 mils)
- Mount away from extreme vibration zones
Compatibility
- 3300 XL Proximitor Sensors
- Compatible with all 3300 XL extension cables
- Optimized for use with Bently Nevada monitoring systems
Packaging List
- 1x 330104-00-03-20-02-CN Proximity Probe
- Armor-protected coaxial cable
- Connector with ClickLoc lock
Shipping and Warranty
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
- Availability: In stock, ready for same-day dispatch
