Bently Nevada 3300 XL Proximity Probe: Compact Industrial Sensor
Core Features

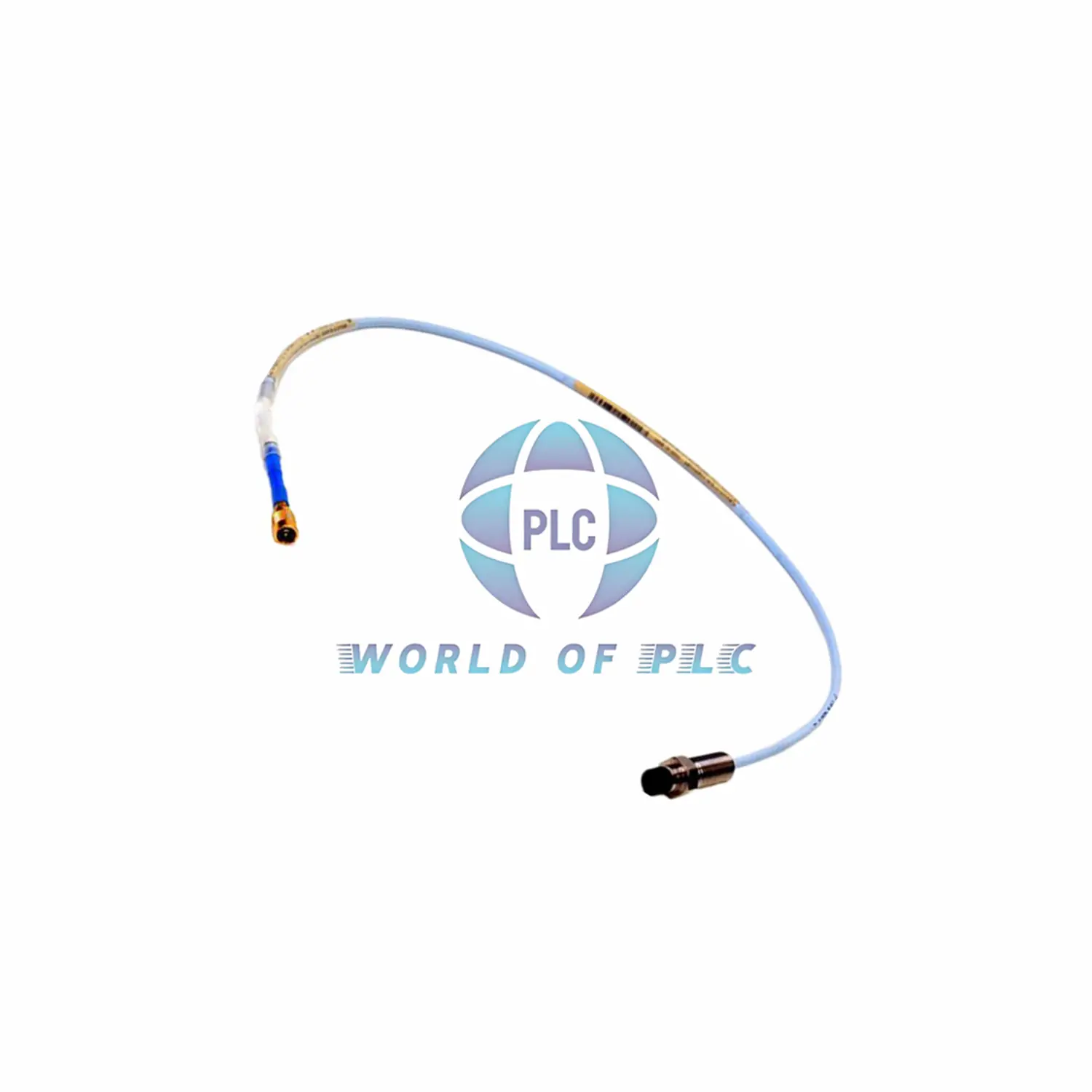

This 3300 XL series probe offers a 1.0m cable in a compact 1.6″ case. Features TipLoc for tip durability and CableLoc (330N pull resistance). Optional FluidLock prevents oil leaks. Built with 8mm stainless steel and PPS plastic tip for rugged environments.
Model Code Breakdown
330191-00-16-10-00
- ▸ 00: No armor
- ▸ 16: 1.6″ case length
- ▸ 10: 1.0m cable
- ▸ 00: Standard approvals
Technical Specifications
Electrical
• -17.5V to -26V DC
• 50Ω output resistance
• <2mV/V sensitivity
• -17.5V to -26V DC
• 50Ω output resistance
• <2mV/V sensitivity
Mechanical
• -55°C to +232°C
• 3/8-24 UNF thread
• 323g/m weight
• -55°C to +232°C
• 3/8-24 UNF thread
• 323g/m weight
Compatibility
BN Extension Cables
BN Proximitor Systems
Applications
HVAC Systems
Conveyor Monitoring
Robotics
