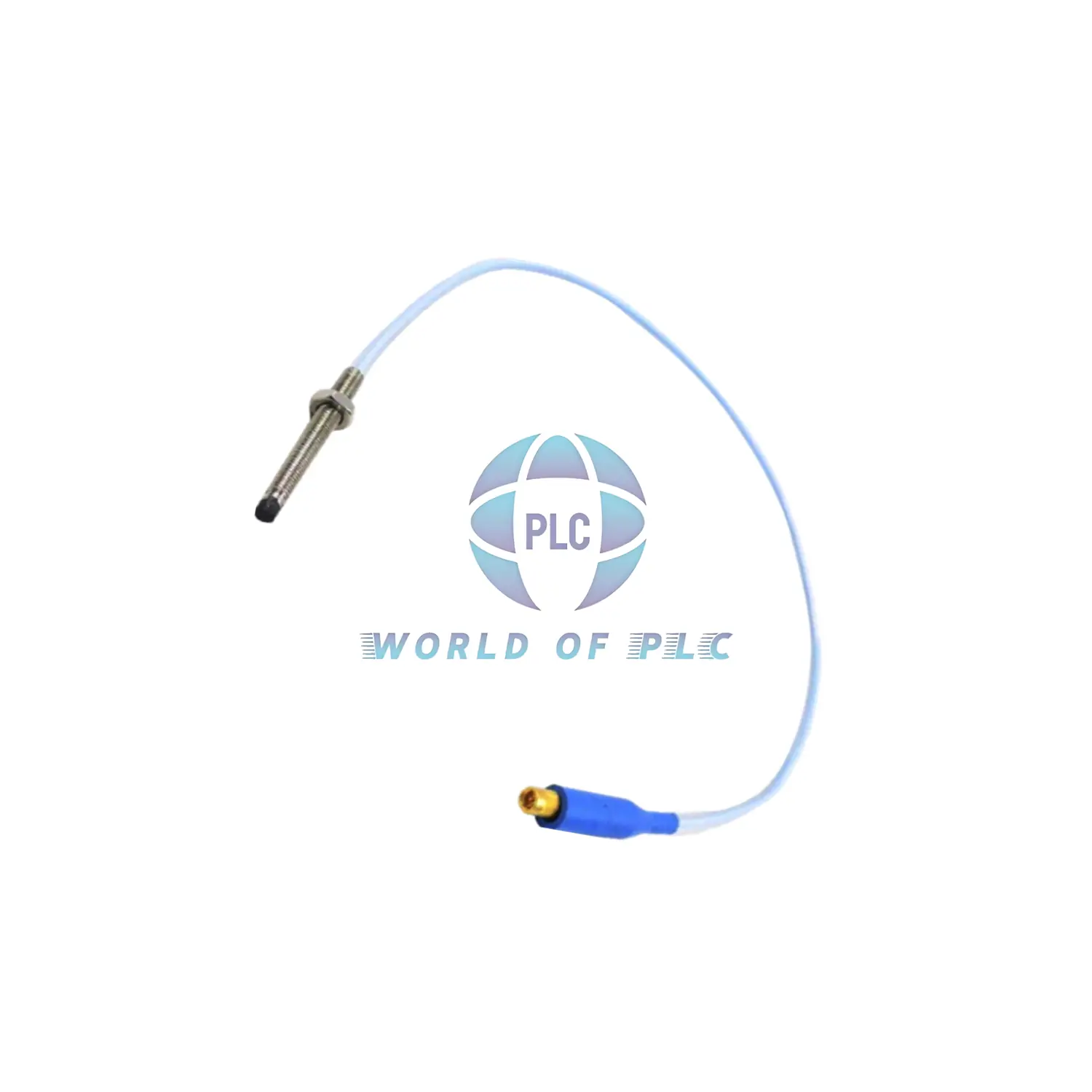

3300 NSv Proximity Probes – Without Armor 330908-00-46-05-02-00

3300 NSv Extended Proximity Probe: Deep-Reach Vibration Detection

Product Configuration

• Full Model: 330908-00-46-05-02-00
• Thread: 3/8-24 UNF
• Case Length: 4.6 in (116mm)
• Cable: 0.5m with ClickLoc connector
• Special Feature: Deep-reach design

Enhanced Specifications

• Tip Sensitivity: 8.0 V/mm (±5%)
• Frequency Range: 0-12 kHz
• Linearity: ±1% full scale
• Insulation Resistance: >100 MΩ at 50V DC
• Max Cable Bend: 25mm permanent radius
• Shock Tolerance: 100g for 11ms

Installation Notes

• Recommended torque: 11.3 N•m
• Max thread depth: 0.563 in (14.3mm)
• Allow 15mm clearance around probe
• Check O-ring before installation

Temperature Performance

• Works from -52°C to +177°C
• Avoid long exposure below -34°C
• Storage same as operating range

Shipping & Warranty

12-month product guarantee. Ships worldwide via FedEx/UPS/DHL. Delivery in 2-4 business days.

Technical FAQ

Q: Can this probe monitor gear mesh vibration?
A: Yes, up to 12kHz frequency range

Q: Minimum target material thickness?
A: 1.5mm carbon steel or equivalent

Q: Max pressure differential for Viton seal?
A: 2 bar (29 psi) continuous

Q: Replacement cable options?
A: Available in 0.5m, 1m, 5m, 7m lengths
