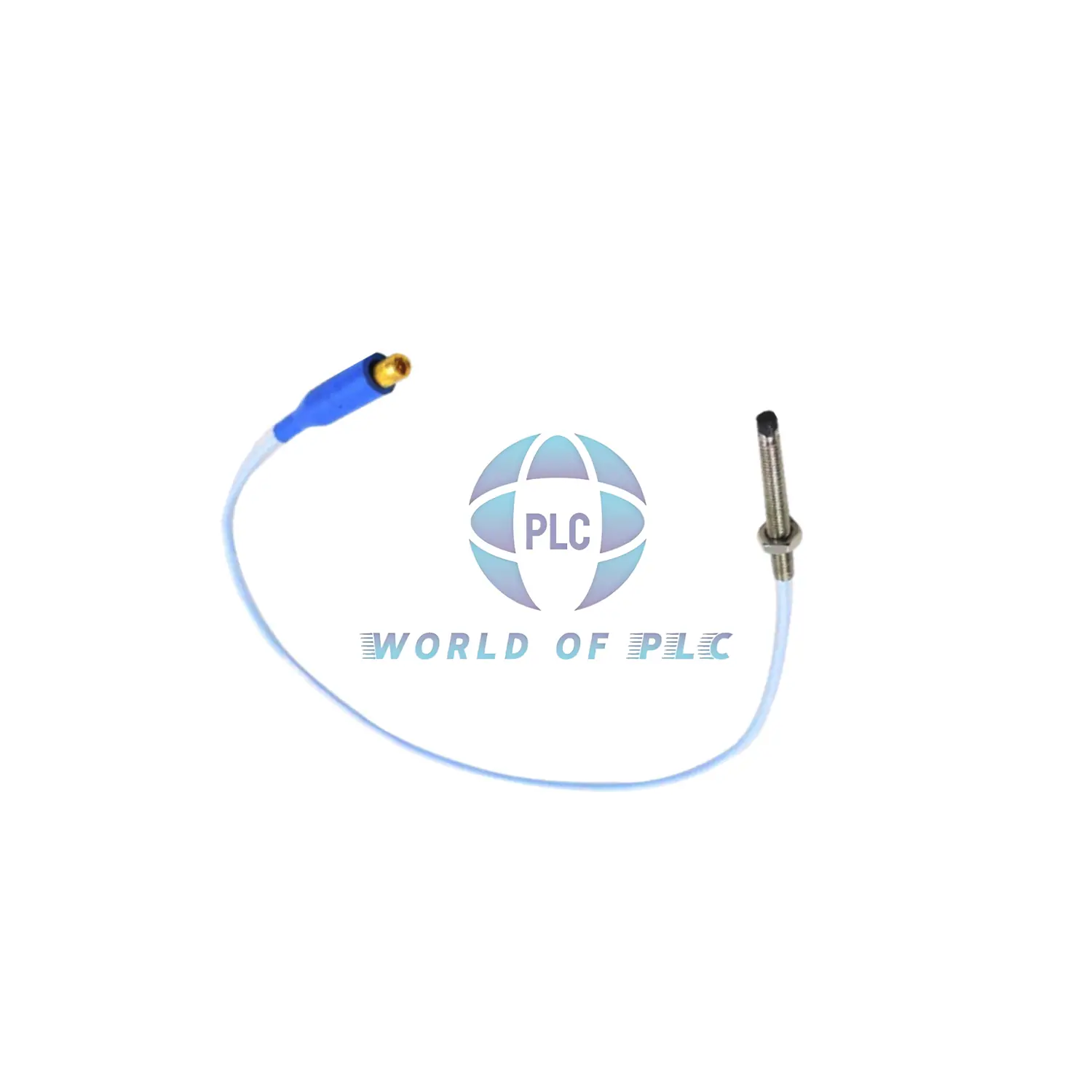

3300 NSv Proximity Probes – Without Armor 330908-00-16-05-02-00

330908-00-16-05-02-00 Vibration Monitoring Probe

Industrial-grade proximity sensor for machinery protection. Made in USA.

Key Specifications

• 1.6 inch case length with 0.5m cable
• Works in -62°F to +351°F environments
• Stainless steel body with PPS sensing tip
• ClickLoc connector for secure attachment
• 4.0Ω resistance (±0.5Ω tolerance)

Part Number Breakdown

• 330908 – Base model
• 00 – Unthreaded length: 0.0 in
• 16 – Case length: 1.6 in
• 05 – Cable length: 0.5m (20 in)
• 02 – ClickLoc connector
• 00 – No agency approvals required

Technical Details

Mounting Guide

1. Verify maximum thread engagement of 0.563 inches
2. Apply maximum torque of 300 in-lb
3. Keep probe tip clearance 0.030-0.150 inches
4. Avoid installation below -30°F to protect seals

Performance Data

• Sensitivity: 200 mV/mil (7.87 V/mm)
• Frequency Response: 0-12 kHz
• Linearity: ±1% within 0.1-0.25 inch range
• Temperature Drift: 0.05%/°F

Frequently Asked Questions

Q: Minimum target material thickness?
A: Requires minimum 3x probe diameter thickness

Q: Cable extension options?
A: Extensions available up to 25m total length

Q: Calibration required?
A: Factory calibrated – field recalibration not needed

Q: Chemical resistance rating?
A: Resists oils, coolants and mild acids

What’s Included

• 1× 330908-00-16-05-02-00 probe
• Protective tip cover
• Installation torque guide
• Material safety sheet

Shipping & Support

• 12-month performance warranty
• Global delivery: FedEx, UPS, DHL
• Technical support: 24-hour response
