Bently Nevada 330901-00-32-05-02-00 Proximity Probe

Product Summary

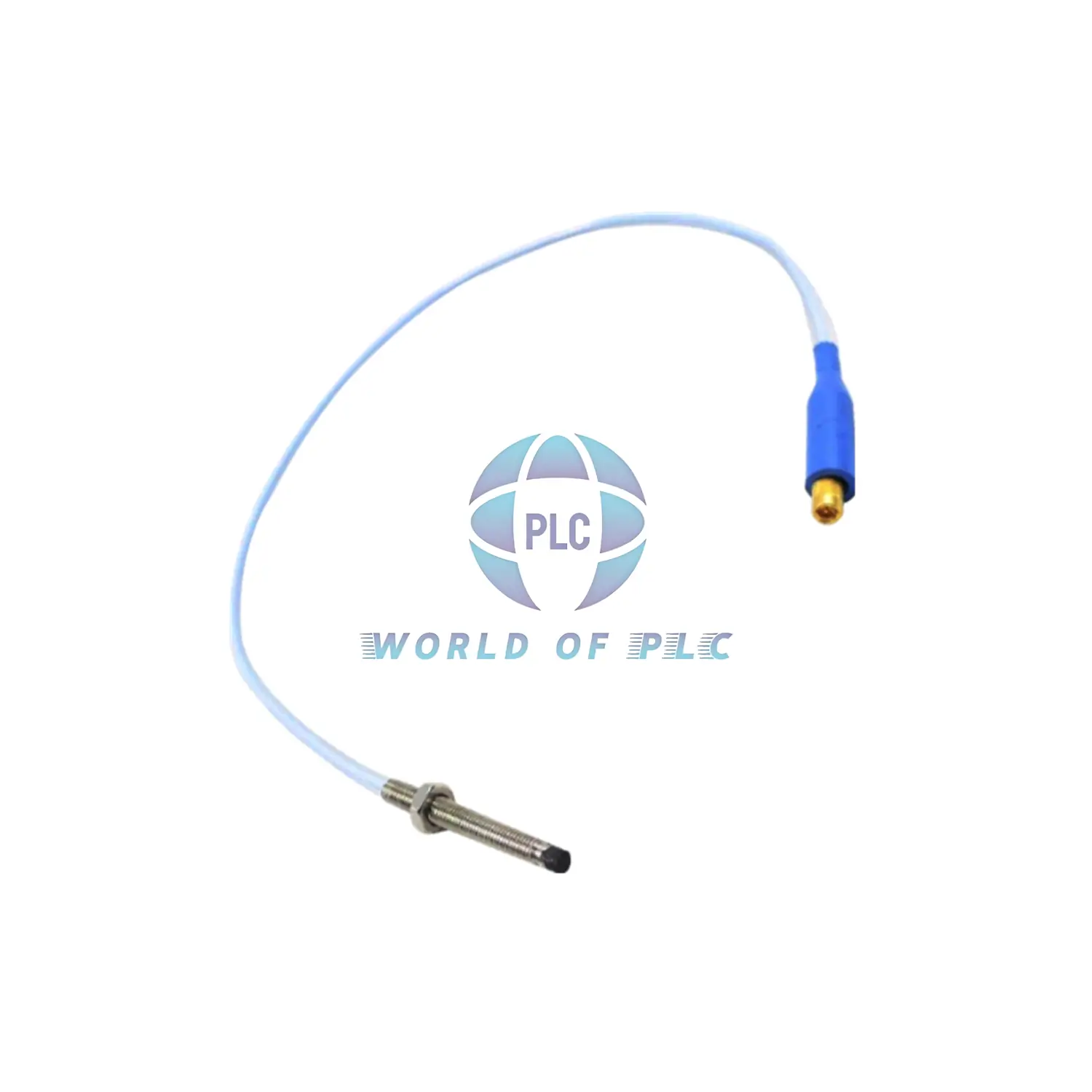

The Bently Nevada 330901-00-32-05-02-00 is a 3300 NSv Proximity Probe. It is compact and ideal for small machines. This model has a 1/4-28 UNF thread, no armor, and a short 0.5 meter cable with a ClickLoc connector.

Full Model Code Breakdown

• 330901 – NSv Probe, 1/4-28 UNF thread, without armor
• 00 – 0.0 in unthreaded length
• 32 – 3.2 in overall case length
• 05 – 0.5 meter (20 in) total cable length
• 02 – Miniature coaxial ClickLoc connector, standard cable
• 00 – No agency approval

Main Technical Specifications

• Output Signal: Compatible with 3300 NSv Proximitor
• DC Resistance: 4.0 ± 0.5 ohms
• Operating Temperature: -52°C to +177°C
• Storage Temperature: -52°C to +177°C
• Weight: About 0.5 kg

Materials

• Tip: Polyphenylene sulfide (PPS)
• Case: AISI 304 stainless steel (SST)
• Cable: 75 Ω coaxial, FEP insulated

Thread and Torque Details

• Thread Type: 1/4-28 UNF
• Max Thread Engagement: 0.375 in
• Max Torque: 7.3 N·m
• Recommended Torque: 5.1 N·m

Installation Guide

• Use finger tight torque for connectors
• Ensure thread engagement does not exceed 0.375 in
• Min bend radius: 25.4 mm
• Do not expose to -34°C or below for long periods
