3300 NSv Proximity Probes Metric Bently Nevada 330910-00-18-50-02-00

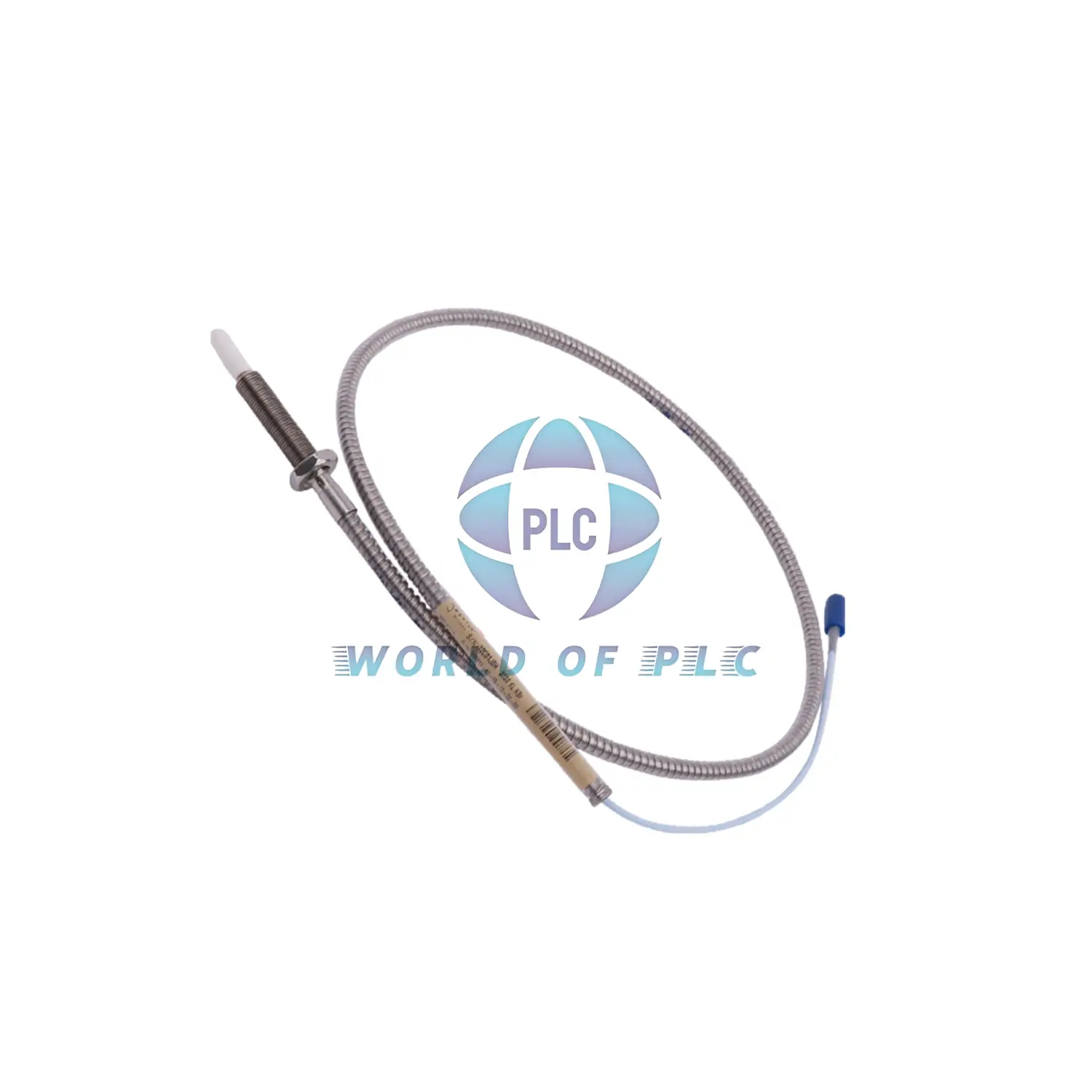

Bently Nevada 330910-00-18-50-02-00 | 3300 NSv Proximity Probe

Full Model Breakdown (330910-00-18-50-02-00)

• Base Model: 330905 – 3300 NSv Probe, M10X1 thread, armored
• Unthreaded Length: 00 = 0 mm
• Case Length: 18 = 180 mm
• Total Probe Length: 50 = 5.0 meters
• Connector Option: 02 = Miniature ClickLoc coaxial connector, standard cable
• Agency Approval: 00 = Not required

Technical Specifications

• Output Type: Passive signal with resistance measurement
• Probe Resistance: 5.3 ± 0.7 ohms (5.0 meter cable)
• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: Stainless steel (AISI 304)
• Cable Insulation: FEP (Fluoroethylene Propylene)
• Cable Impedance: 75 Ω coaxial
• Available Cable Lengths: 0.5 m, 1 m, 5 m, 7 m
• Weight Range: 14 g to 150 g

Temperature Performance

• Operating Range: -52°C to +177°C
• Storage Range: -52°C to +177°C
• Warning: Avoid long exposure below -34°C to prevent seal damage

Temperature Classification

• T1: -55°C to +232°C
• T2: -55°C to +177°C
• T3: -55°C to +120°C
• T4: -55°C to +80°C
• T5: -55°C to +40°C
• For EPL Dc: up to 280°C max (varies by condition)

Mechanical Information

• Thread Size: M10x1
• Max Thread Engagement: 15 mm
• Minimum Bend Radius: 25.4 mm
• Case Max Torque: 33.9 N·m (300 in·lb)
• Recommended Torque: 11.3 N·m (100 in·lb)
• Connector Max Torque: 0.56 N·m (5 in·lb)
• Connector Installation: Finger tight
