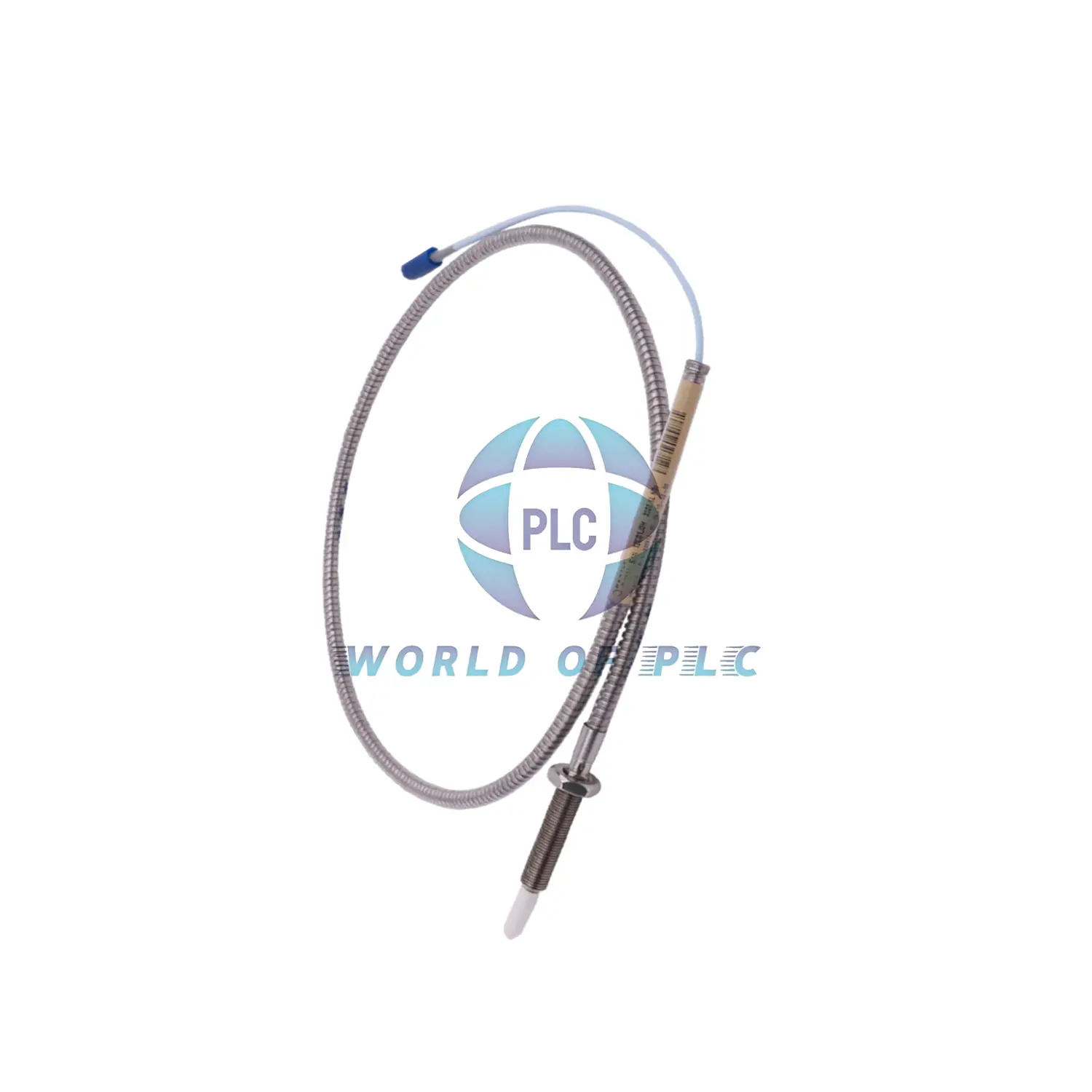

Bently Nevada 330910-00-05-50-02-00 Proximity Probe
Overview
The Bently Nevada 330910-00-05-50-02-00 is a 3300 NSv Proximity Probe built for space-limited industrial systems. It features a strong stainless steel armored body, long cable length, and stable signal output. Ideal for high-temperature or vibration-heavy applications.
Key Technical Specifications
- Thread: M10x1 with stainless steel armor
- Unthreaded Length: 0 mm
- Case Length: 50 mm
- Total Cable Length: 5.0 meters (16.4 feet)
- Connector Type: Miniature coaxial ClickLoc
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 304 stainless steel
- Cable Type: 75 Ω coaxial, FEP insulated
- Minimum Cable Bend Radius: 25.4 mm
- Weight: 14 to 150 g
Advanced Electrical Data
- DC Resistance (5.0 m): 5.3 ± 0.7 Ω
- Thread Engagement Limit: 15 mm
- Case Torque: Max 33.9 Nm, Recommended 11.3 Nm
- Connector Torque: Max 0.56 Nm, Finger-tight preferred
Explosion Protection Ratings
- EPL Ga and Gc:
- T1: -55°C to +232°C
- T2: -55°C to +177°C
- T3: -55°C to +120°C
- T4: -55°C to +80°C
- T5: -55°C to +40°C
- EPL Dc:
- T280°C @ -55°C to +232°C
- T225°C @ -55°C to +177°C
- T170°C @ -55°C to +120°C
- T130°C @ -55°C to +80°C
- T105°C @ -55°C to +100°C
- T90°C @ -55°C to +40°C
Model Tree – Full Ordering Breakdown
- 330910 – NSv Probe with M10x1 thread and armor
- 00 – Unthreaded Length: 0 mm
- 05 – Case Length: 50 mm
- 50 – Cable Length: 5.0 meters
- 02 – Miniature coaxial ClickLoc connector
- 00 – No agency approval required
Warranty and Delivery
- 12-month manufacturer warranty
- Ships via FedEx, UPS, or DHL worldwide
