3300 NSv Proximity Probes | 330901-11-25-10-01-00 Without Armor

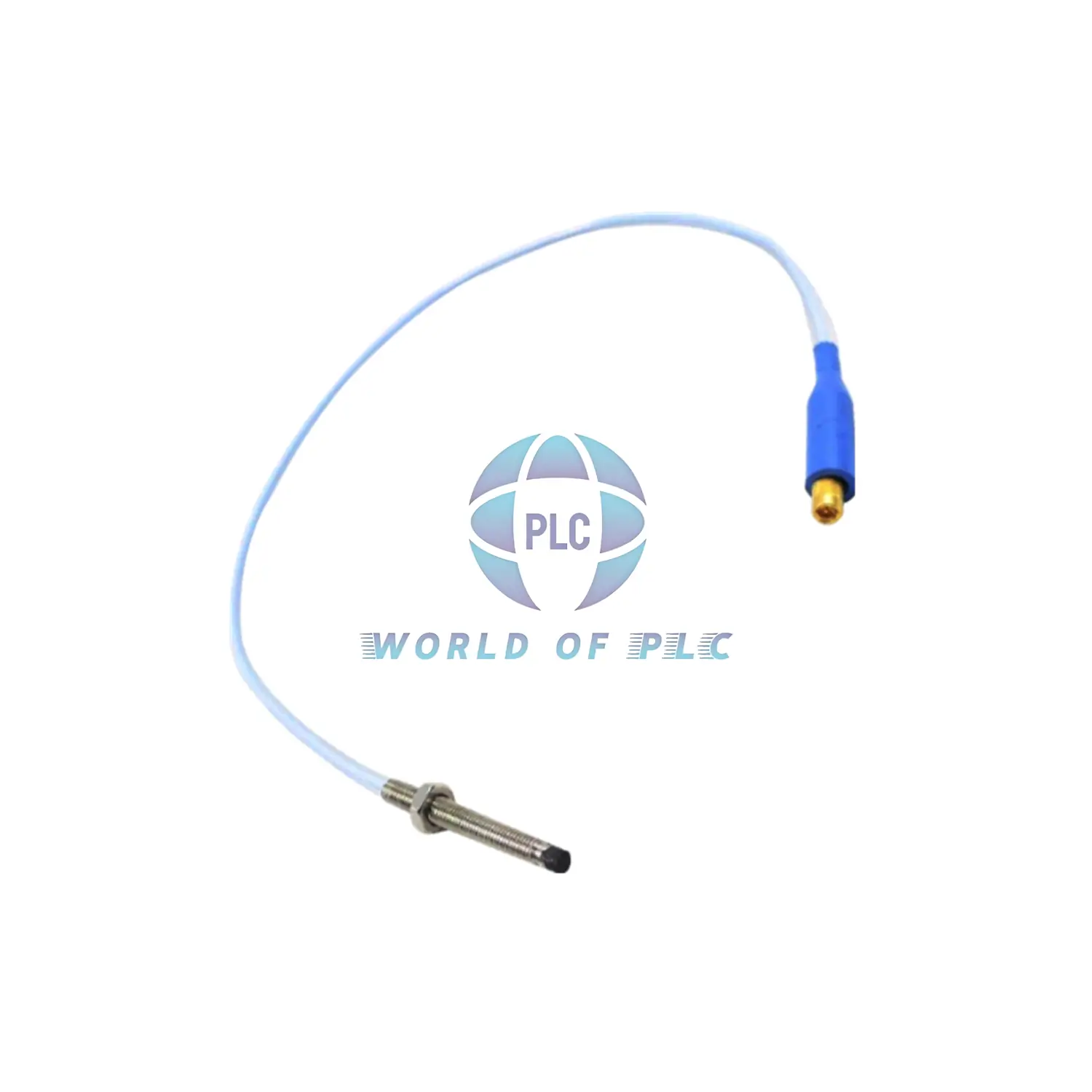

Bently Nevada 330901-11-25-10-01-00 3300 NSv Proximity Probe

Technical Specs

• Thread: 1/4-28 UNF
• Tip Length: 1.1 inches
• Case Length: 2.5 inches
• Cable Length: 1.0 meter (39 inches)
• Signal: Non-contact shaft position
• Cable: 75 ohm coaxial, FEP insulated
• Connector: Mini ClickLoc with protector
• Resistance: 4.2 ± 0.5 ohms at 1 m
• Operating Temp: -52°C to +177°C (-62°F to +351°F)
• Storage Temp: -52°C to +177°C (-62°F to +351°F)
• Tip Material: PPS plastic
• Case Material: Stainless steel AISI304
• Seal: Viton O-ring
• Weight: 14 to 150 grams (0.5 to 5.3 oz)

Model Breakdown

• 330901 – Series
• 11 – Tip length 1.1 in
• 25 – Case length 2.5 in
• 10 – Cable length 1.0 m
• 01 – Mini ClickLoc connector
• 00 – No approvals

Use Cases

• Motors, turbines, pumps
• Detect shaft position without contact
• Prevent machine failures
• Fits tight spaces
• Supports maintenance checks

Compatibility

• Works with 3300 NSv Proximitor system
• Fits Bently Nevada gear

Package Includes

• One 330901-11-25-10-01-00 probe
• No certificates or manuals

Warranty & Shipping

• 12-month warranty
• Ships via FedEx, UPS, DHL
• Brand new, factory sealed
