3300 NSv Proximity Probes | 330901-10-25-10-02-00 Without Armor

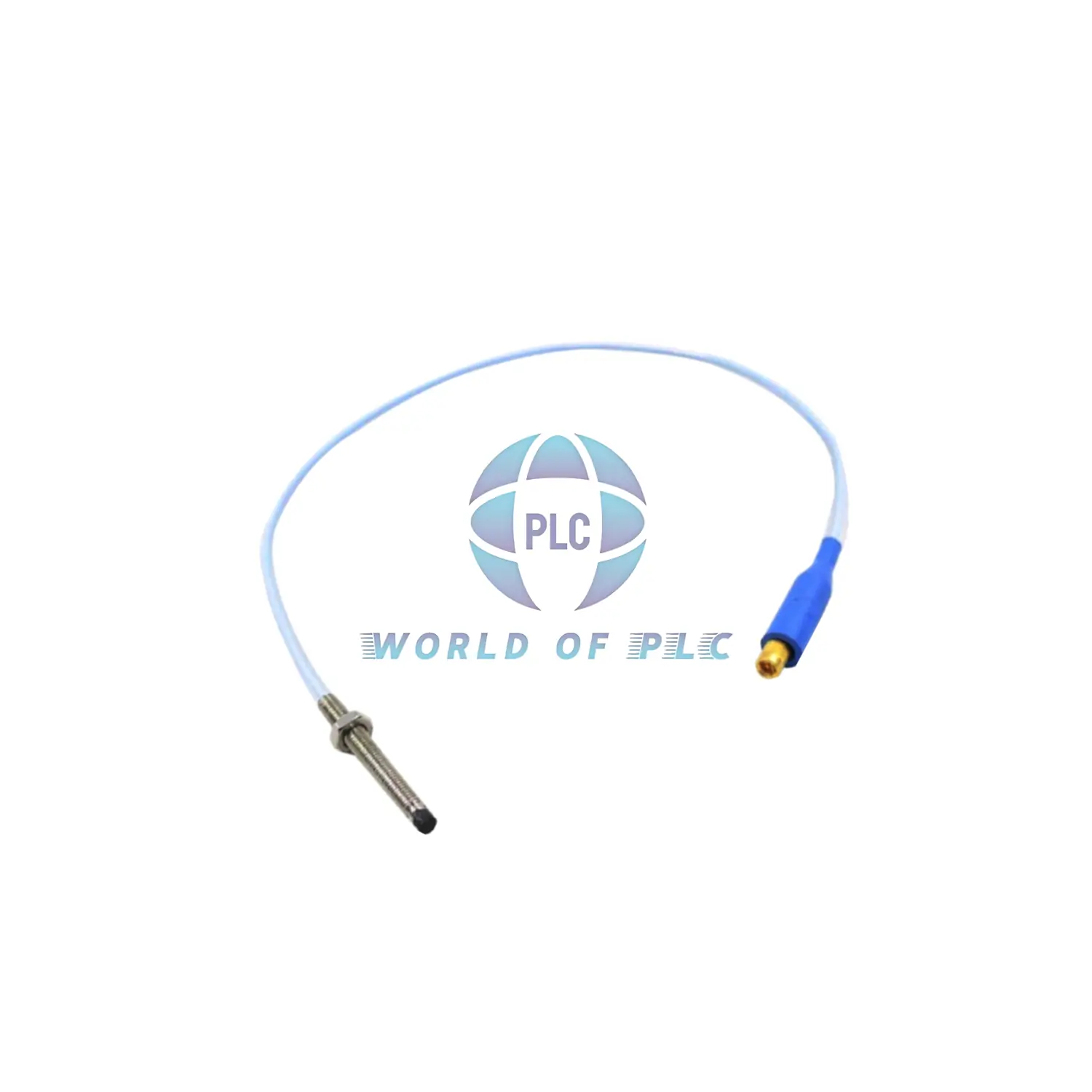

Bently Nevada 330901-10-25-10-02-00 Proximity Probe

Product Summary

The 330901-10-25-10-02-00 is a 3300 NSv Proximity Probe by Bently Nevada. It uses a 1/4-28 UNF thread and is designed without armor. This model features a 2.5-inch case length, 1-inch unthreaded section, and a 1.0-meter cable with a miniature ClickLoc connector.

Model Breakdown

• 330901: NSv Series Probe
• 10: 1.0 in unthreaded length
• 25: 2.5 in overall case length
• 10: 1.0 meter cable length
• 02: ClickLoc connector, standard cable
• 00: No approval required

Technical Specifications

• DC Resistance: 4.2 ± 0.5 Ω (at 1.0 m)
• Cable: 75 Ω coaxial, FEP insulated
• Weight: Approx. 0.5 kg

Operating Conditions

• Operating Temp: -52°C to +177°C
• Storage Temp: -52°C to +177°C
• Seal Warning: Extended exposure below -34°C may damage seal

Sealing and Pressure

• Seal Type: Viton O-ring
• Note: Not pressure-tested at factory
