3300 NSv Proximity Probes | 330901-00-60-05-02-05 | Without Armor

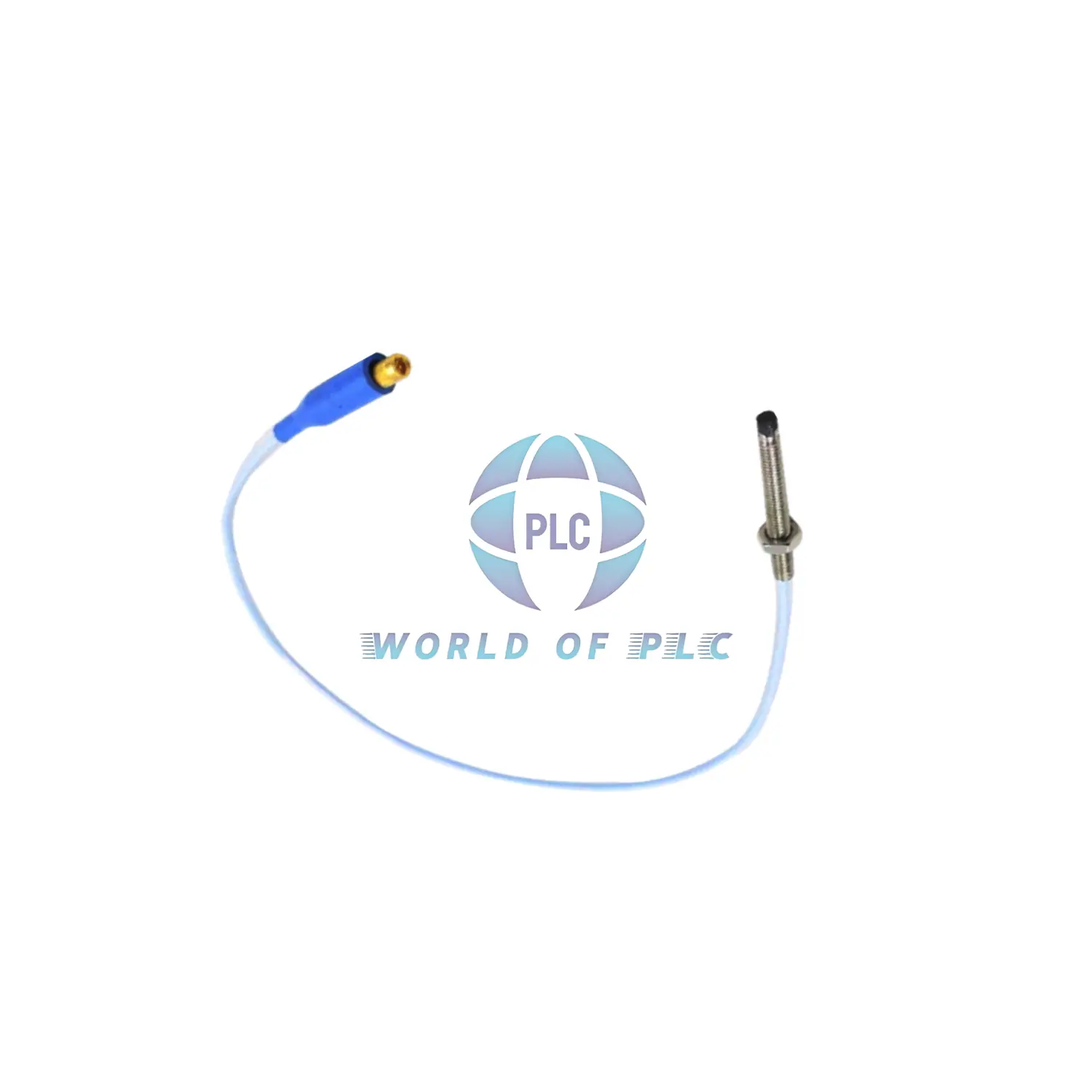

Bently Nevada 330901-00-60-05-02-05 Proximity Probe

Product Overview

• Part Number: 330901-00-60-05-02-05
• Series: 3300 NSv
• Thread: 1/4-28 UNF
• Armor: Not included
• Made in: USA

Suffix Breakdown

• 00: 0.0 in unthreaded length
• 60: 6.0 in overall case length
• 05: 0.5 meter (20 in) cable length
• 02: Mini ClickLoc connector, standard cable
• 05: Multiple approvals (CSA, ATEX, IECEx)

Technical Specs

• Cable Type: 75 Ω coaxial with FEP insulation
• Resistance: 4.0 ± 0.5 Ω (at 0.5 m)
• Temperature Range: -52°C to +177°C
• Storage Temp: Same as operating range
• Case Material: AISI304 stainless steel
• Tip Material: PPS
• Sealing: Viton O-ring, seals pressure at tip
• Thread Depth Limit: Max 0.375 in
• Weight: 14–150 g (0.5–5.3 oz)

Torque Specs

• Max Torque: 7.3 N·m (65 in·lb)
• Recommended: 5.1 N·m (45 in·lb)

Compatibility

• Works with 3300 NSv Proximitor and systems
• Compatible with Trendmaster Pro setups
