3300 NSv Proximity Probes | 330901-00-52-10-02-05 Without Armor

330901-00-52-10-02-05 3300 NSv Proximity Probe Information

Product Summary

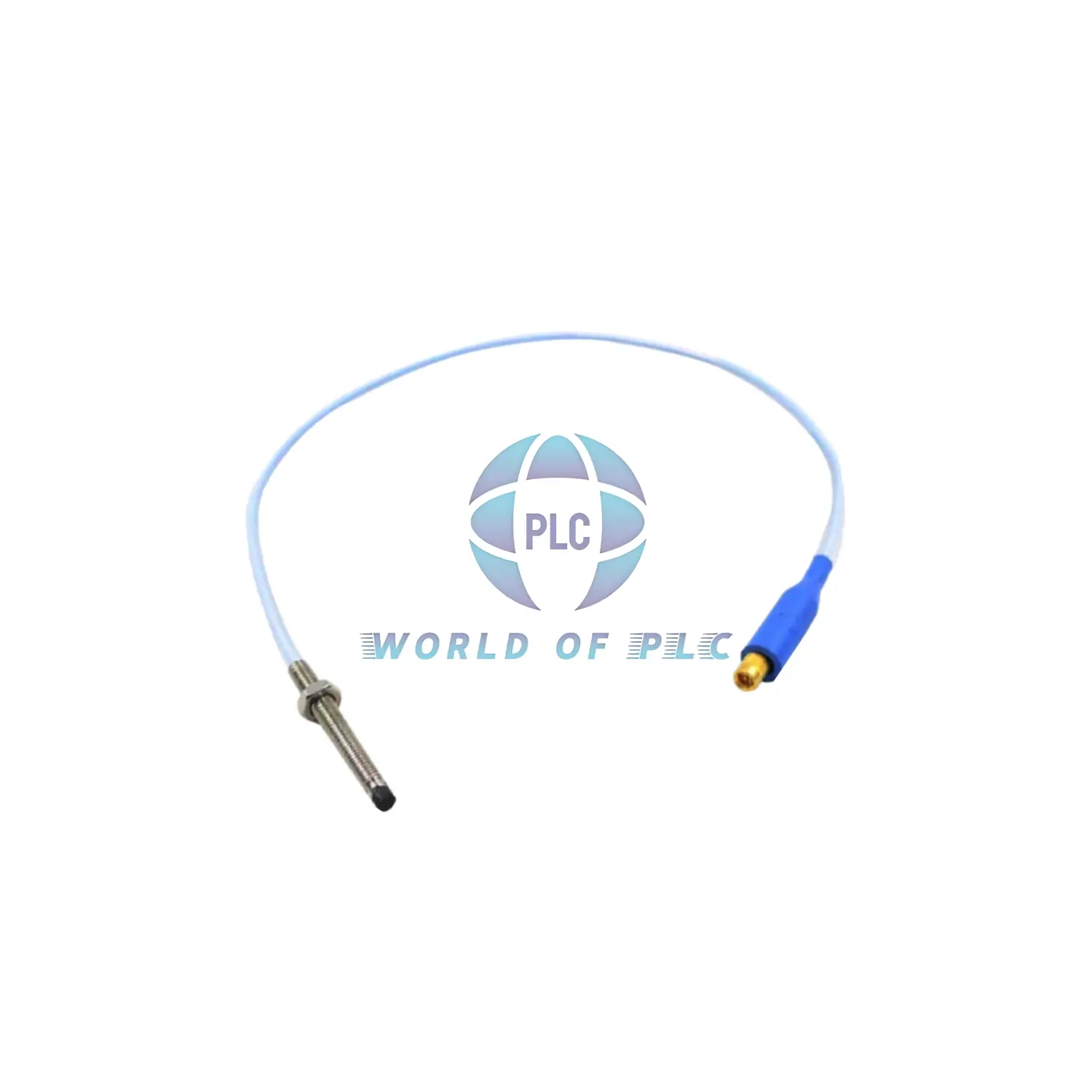

The 330901-00-52-10-02-05 is a 3300 NSv proximity probe with a 1/4-28 UNF thread and no armor. It uses a miniature coaxial ClickLoc connector with a standard cable. This model is ideal for accurate vibration monitoring in tight or high-temperature spaces.

Model Breakdown (Suffix Tree)

• 330901 – NSv Probe Series
• 00 – Unthreaded Section: 0 inches
• 52 – Case Length: 5.2 inches
• 10 – Cable Length: 1.0 meter (39 inches)
• 02 – Connector Type: Miniature coaxial ClickLoc with standard cable
• 05 – Approvals: Multiple certifications

Main Technical Specs

• Thread Size: 1/4-28 UNF
• Material: Case – AISI 304 stainless steel, Tip – PPS
• Cable Type: 75-ohm coaxial with FEP insulation
• Probe Resistance (1.0 m): 4.2 ± 0.5 ohms
• Output Signal: 200 mV/mil (typical)
• Accuracy: ±1% of full range (typical)
• Frequency Range: DC to 10 kHz
• Weight: Approx. 14 to 150 grams

Temperature and Pressure Limits

• Operating Temperature: -52°C to +177°C
• Storage Temperature: -52°C to +177°C
• Pressure Seal: Viton O-ring seals between tip and case

Torque and Thread Details

• Max Connector Torque: 7.3 N·m (65 in·lb)
• Recommended Torque: 5.1 N·m (45 in·lb)
• Max Thread Engagement: 0.375 inch

What’s Inside the Package

• One 330901 NSv probe (5.2 in case, 1.0 m cable)
• Miniature ClickLoc connector
• Basic install guide
• Protective cap included

Extra Technical Values

• Dielectric Strength: >1000 V RMS
• Capacitance: 75 to 95 pF/m
• Humidity Rating: Up to 95% (non-condensing)
• Cable Bend Radius: ≥25 mm

Shipping and Warranty

• Ships via FedEx, UPS, or DHL
• Standard 12-month product warranty
• Free technical help available 24/7
