3300 NSv Proximity Probes | 330901-00-30-10-02-00 Without Armor

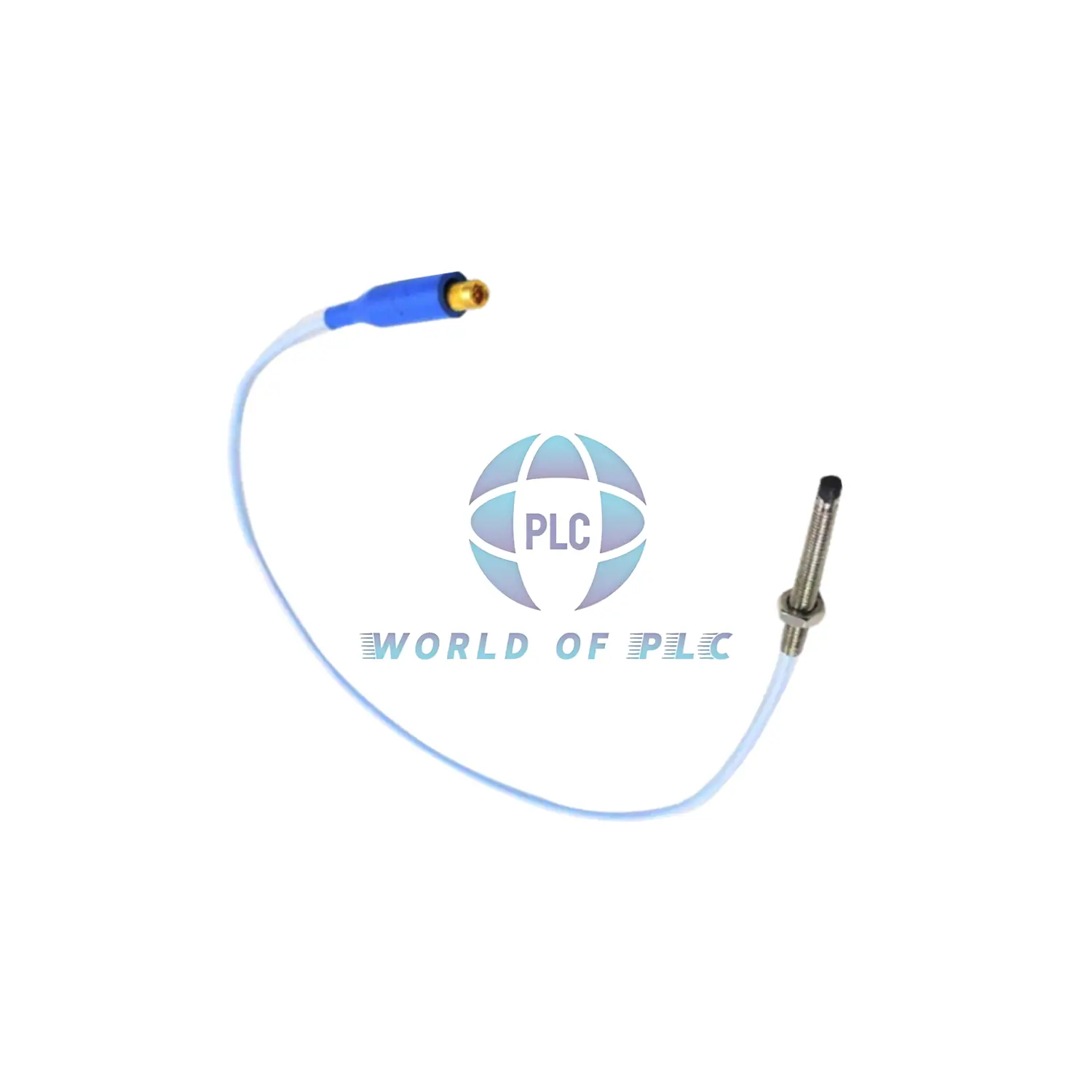

Bently Nevada 330901-00-30-10-02-00 3300 NSv Proximity Probe

Product Overview

This proximity probe is part of the Bently Nevada 3300 NSv series. It is designed for close-clearance machines with narrow installation spaces. The 3.0 inch case allows stable mounting and vibration detection on small shafts.

Key Technical Data

• Thread Type: 1/4-28 UNF
• Unthreaded Length: 0.0 inch
• Overall Case Length: 3.0 inches
• Total Probe Length: 1.0 meter
• Connector: Miniature coaxial ClickLoc
• Cable Type: Standard, 75 Ω coaxial, FEP jacket
• Tip Material: Polyphenylene Sulfide (PPS)
• Case Material: AISI304 Stainless Steel
• Weight: 14 to 150 g

System Compatibility

• Works with Bently Nevada 3300 NSv systems
• Fits in limited space installations
• Suitable for applications needing short-body sensors

Model Suffix Tree (330901-00-30-10-02-00)

• 330901: 3300 NSv Probe, 1/4-28 UNF thread, without armor
  • -00: 0.0 inch unthreaded length
  • -30: 3.0 inch overall case length
  • -10: 1.0 meter total cable length
  • -02: Miniature coaxial ClickLoc connector, standard cable
  • -00: No agency approval required
