3300 NSv Proximity Probes | 330901-00-12-10-02-05 | Without Armor

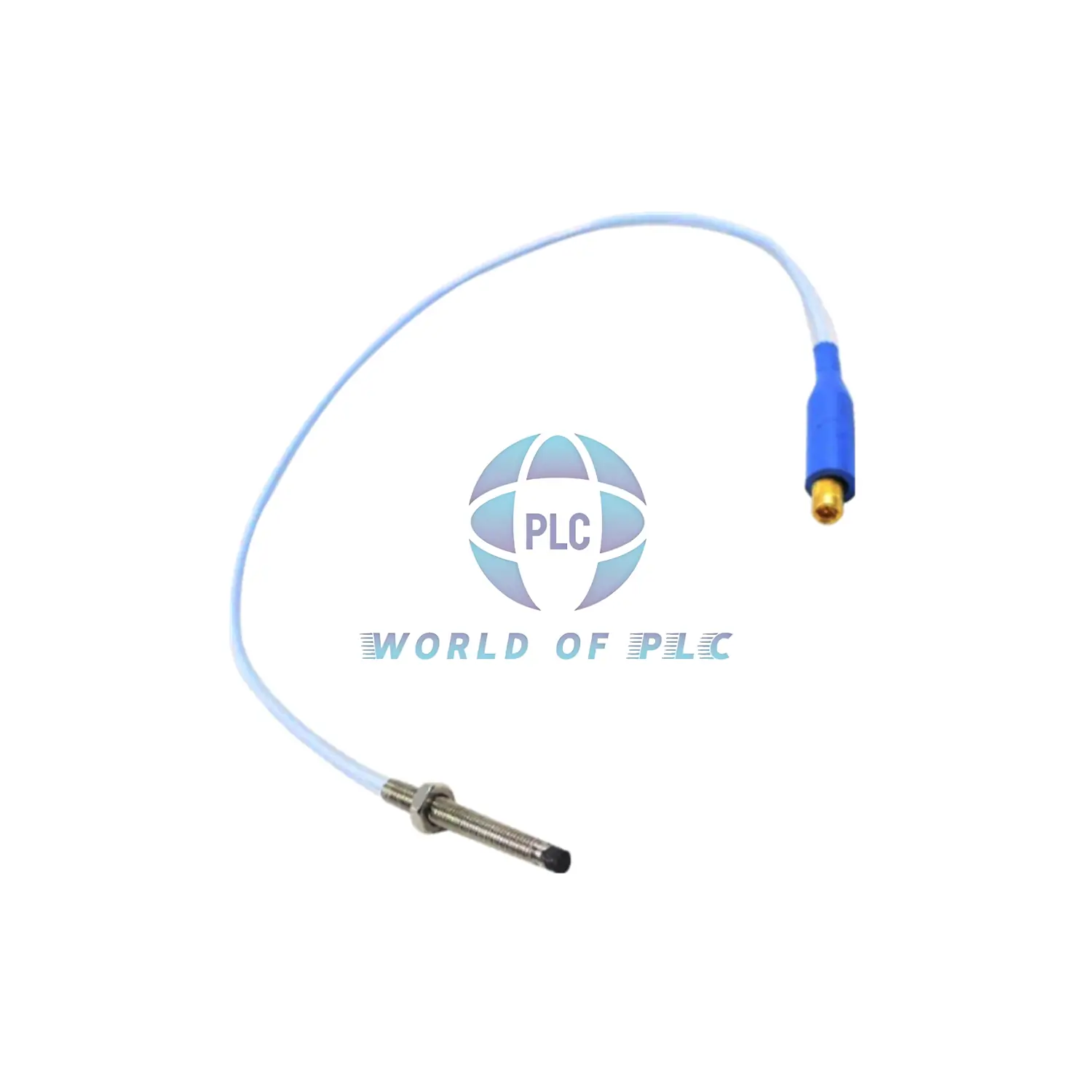

Bently Nevada 330901-00-12-10-02-05 Proximity Probe

Product Summary

This is a 3300 NSv series probe. It is small and strong. It works well in tight spaces. The case is 1.2 inches long. The cable is 1 meter. It uses a 1/4-28 UNF thread. No armor included.

Model Breakdown (330901-00-12-10-02-05)

• 330901: 3300 NSv Probe
• 00: 0.0 inch unthreaded
• 12: 1.2 inch case length
• 10: 1.0 meter cable
• 02: ClickLoc connector, standard cable
• 05: With multiple safety approvals

Key Specs

• Signal: Non-contact vibration signal
• Resistance: 4.2 ± 0.5 ohms at 1 meter
• Cable: 75 Ω coaxial, FEP insulated
• Work Temp: -52°C to +177°C
• Weight: About 0.5 kg

Materials

• Case: Stainless steel (AISI304)
• Tip: PPS plastic
• Seal: Viton O-ring

Install Info

• Thread: 1/4-28 UNF
• Max Thread Length: 0.375 in
• Max Torque: 7.3 N·m
• Best Torque: 5.1 N·m

Problem Solved

• Need small sensor? 1.2 inch case fits tight spaces
• Hot or cold machine? Works in -52°C to +177°C
• Loose signals? ClickLoc keeps signal steady

Shipping

• Ships by FedEx, UPS, or DHL
