25B-E1P7N104 | Allen-Bradley PowerFlex 525 AC Drive

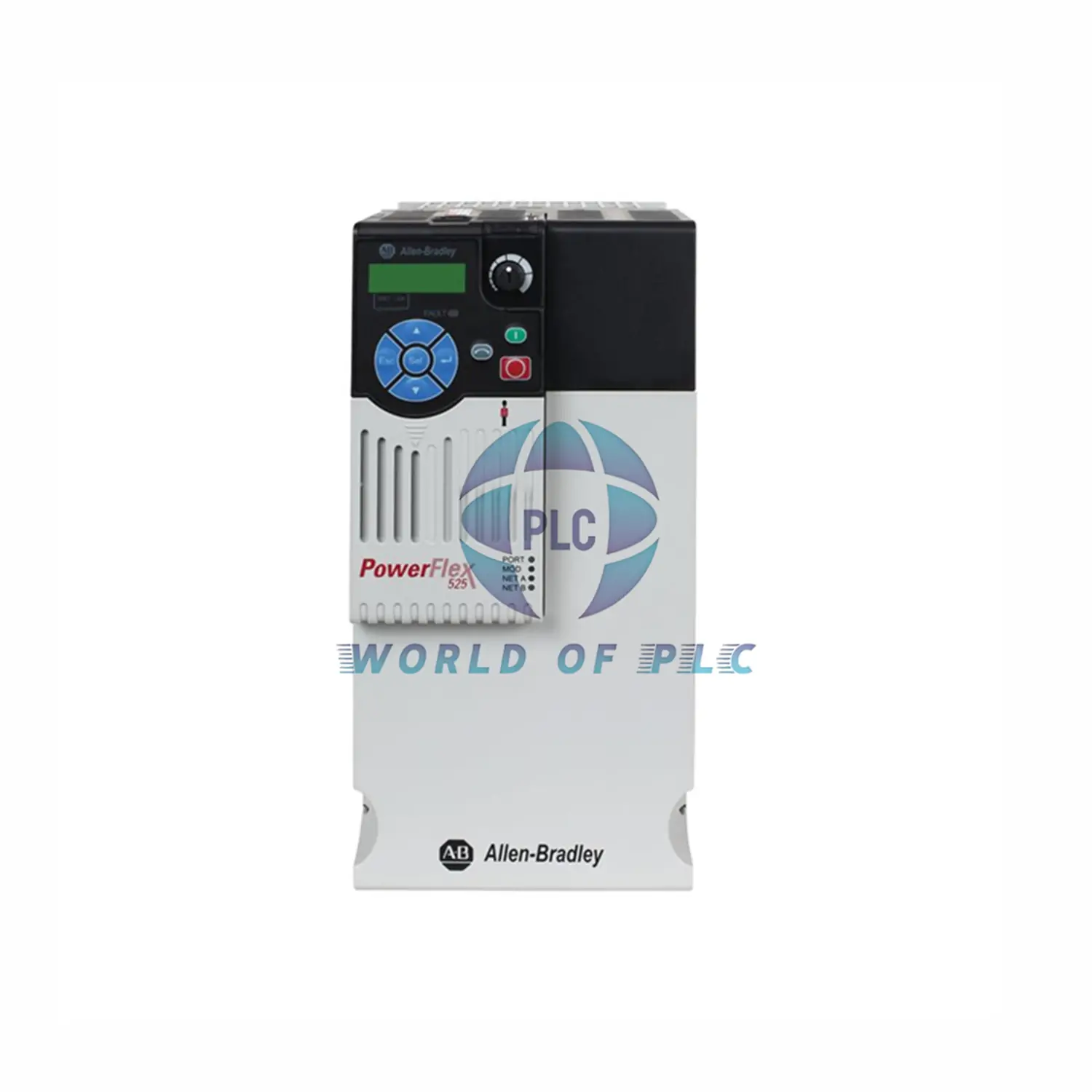

PowerFlex 525 25B-E1P7N104 – 600V Compact Drive

1.7A Output | 600V 3-Phase | Frame A | Built-in Braking

The 25B-E1P7N104 delivers precise motor control for 1HP (0.75kW) applications in 525-600V AC systems. Compact Frame A design saves space.

🚀 Key Features

• 1.7A continuous output current
• Works with 525-600V AC input
• Built-in IGBT braking for quick stops
• Compact Frame A (152×72×172mm)
• Standard Ethernet/IP connectivity

🔧 Technical Specifications

• Model: 25B-E1P7N104
• Input: 525-600V AC, 2.3A, 3-phase
• Output: 0-575V AC, 1.7A
• Power: 0.75kW (1HP)
• Frequency: 0-500Hz adjustable
• Control Methods: V/Hz, Vector, PM control
• I/O: 6 digital inputs, 2 analog inputs
• Safety: Safe Torque-Off option
• Weight: 1.5kg (3.3lbs)

💡 Expert FAQs

• Q: Can it handle servo motors?
  A: Yes, supports PM motor control
• Q: Is horizontal mounting possible?
  A: Yes, with optional fan kit
• Q: What’s the temperature limit?
  A: 50°C standard, 70°C with cooling
• Q: Does it support PID control?
  A: Yes, built-in PID functionality
• Q: Can I daisy-chain Ethernet?
  A: Yes, supports linear topology

📦 Package Contents

• PowerFlex 525 drive (25B-E1P7N104)
• Mounting hardware
• Quick start guide

12-month warranty | Worldwide express shipping
