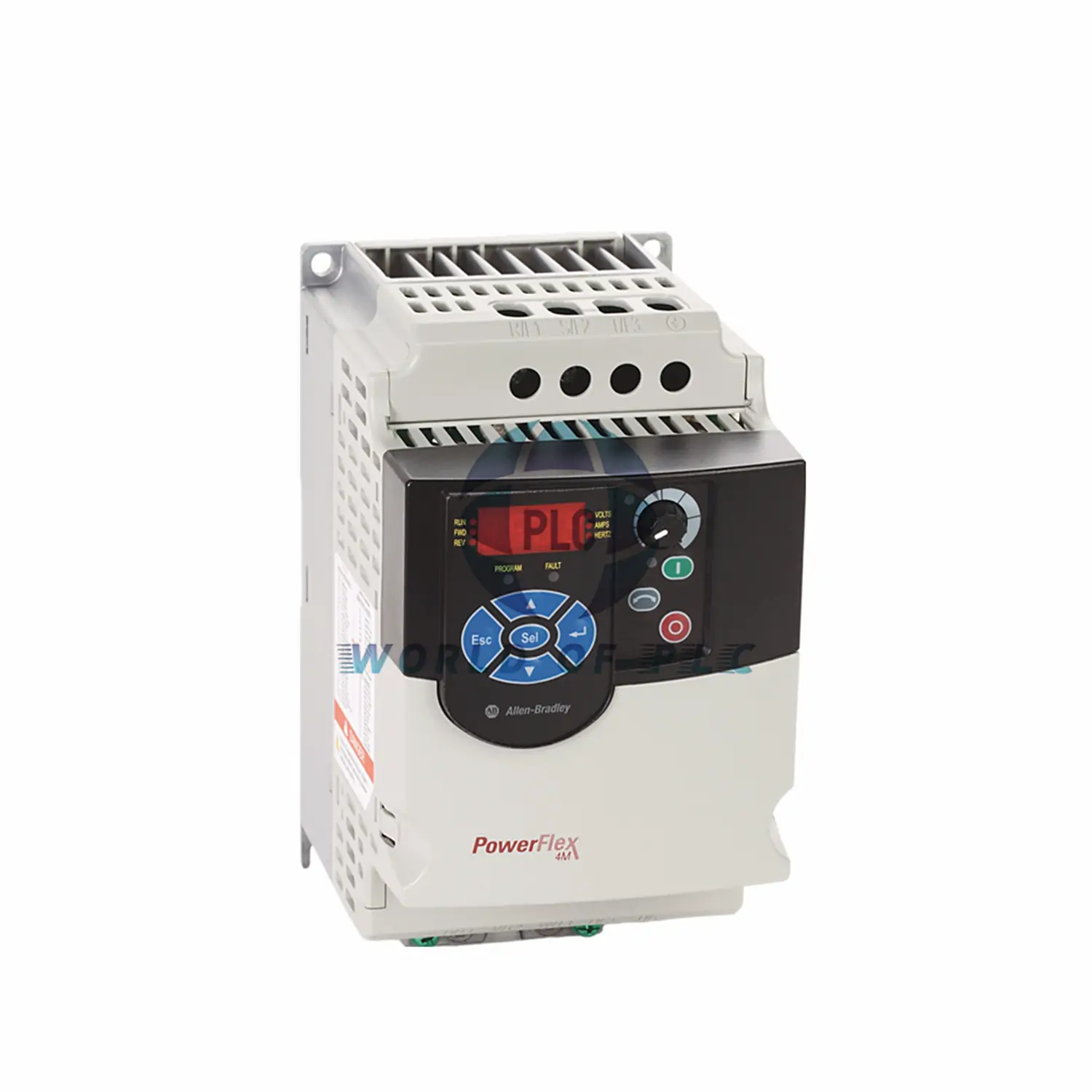

Allen-Bradley 22F-V4P5N103 PowerFlex 4M Drive – 1HP Single-Phase Solution

The 22F-V4P5N103 delivers reliable 1HP motor control from standard 120V single-phase power, perfect for small industrial applications.

Key Features

• Converts 120V single-phase to 3-phase output
• Controls motors up to 1HP (0.75kW)
• Compact B-frame design saves space
• Simple panel mounting installation
• Adjustable PWM frequency for quiet operation

Technical Specifications

• Model: 22F-V4P5N103
• Input: 100-120V AC, 1-phase, 18A
• Output: 0-230V AC, 3-phase, 4.5A
• Frequency: 50/60Hz operation
• Enclosure: IP20 (indoor use)
• Dimensions: Compact B-frame size
• Weight: Lightweight at 1.8kg (4lbs)

Support & Services

• 12-month product warranty
• Fast shipping via FedEx, UPS, or DHL
• Delivery in 2-3 business days

Common Questions

• Q: Can I use this in my home workshop?
  A: Yes, works with standard 120V outlets.
• Q: What motor types are compatible?
  A: Any 3-phase motor up to 1HP.
• Q: Is the keypad removable?
  A: No, it’s fixed but easy to use.
• Q: How do I limit startup current?
  A: Use the built-in pre-charge feature.
• Q: Can I adjust the motor speed?
  A: Yes, fully adjustable 0-230V output.

Need wiring help? Download full manual for installation and programming details.
