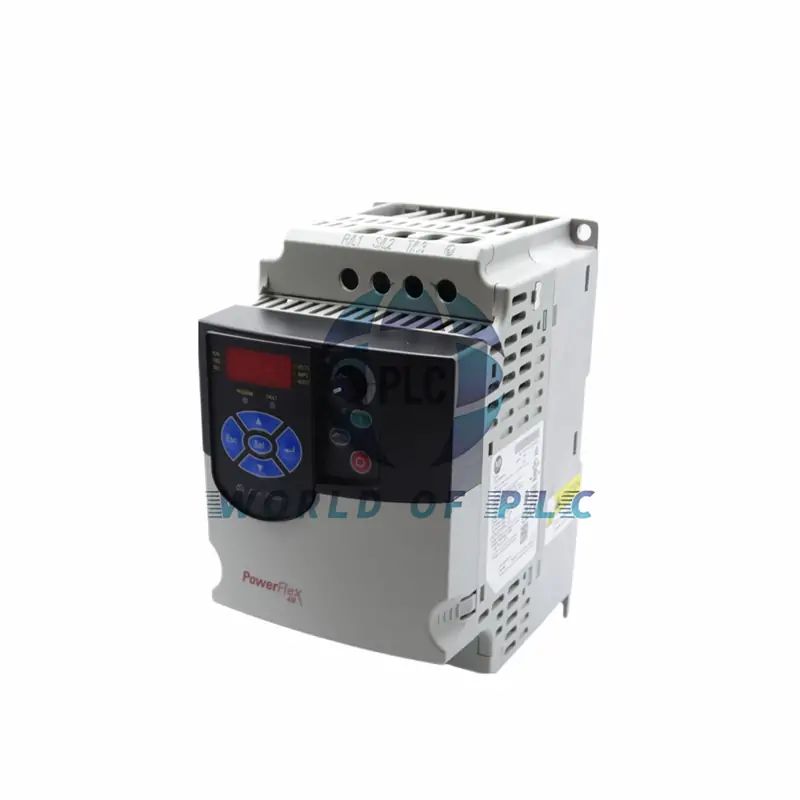

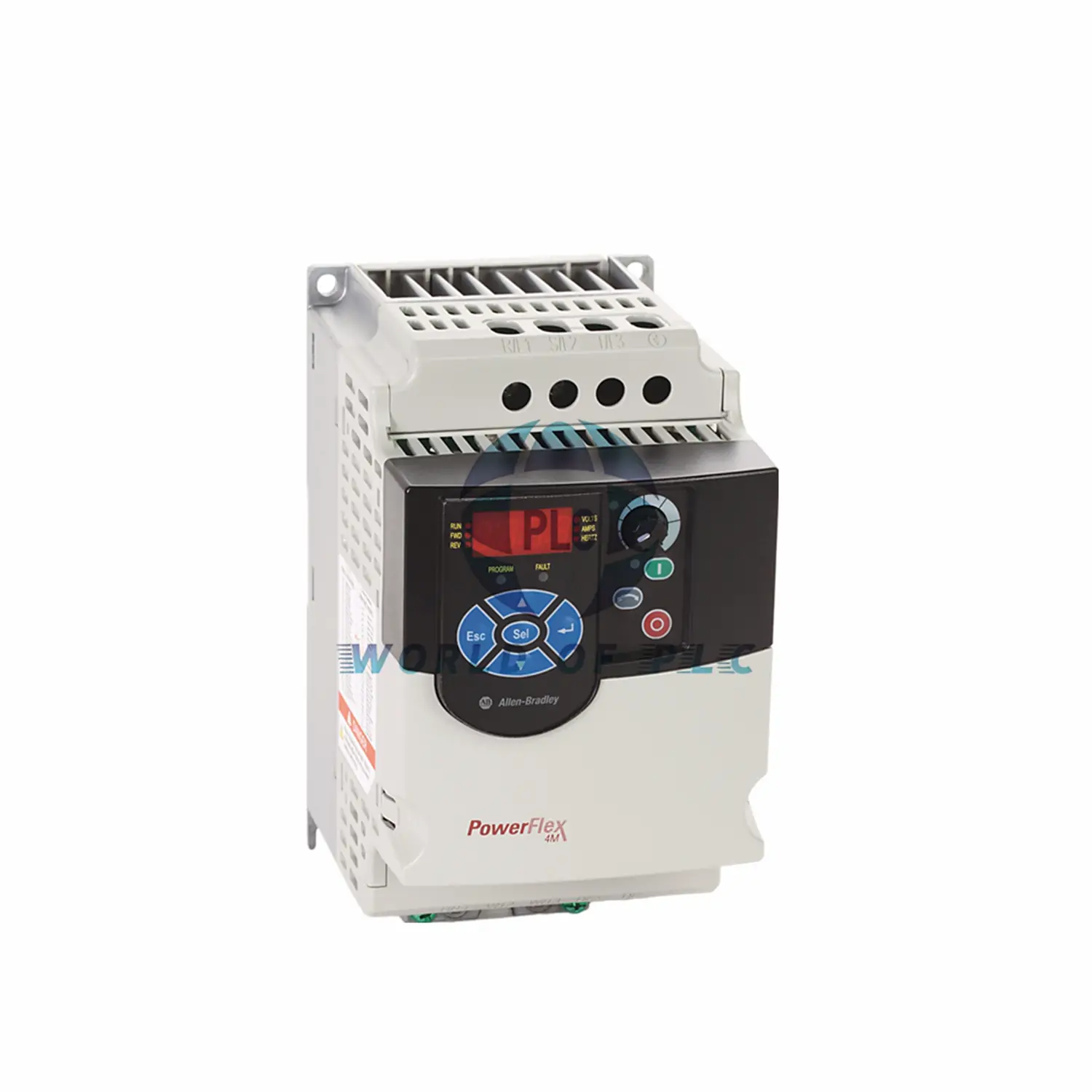

PowerFlex 4M Adjustable Frequency AC Drive – 22F-D4P2N113
The Allen-Bradley PowerFlex 4M 22F-D4P2N113 is a compact, high-performance variable frequency drive (VFD) designed for precise motor control in industrial applications. With 1.5 kW (2 HP) output power and V/Hz control, it ensures smooth operation for 3-phase motors. Features include an integrated EMC filter, RS485 communication, and a user-friendly keypad for easy setup.
Key Features
- Voltage: 380-480V AC input, 0-460V AC output
- Control: Volts/Hertz (V/Hz) with 0-400Hz frequency range
- Built-in keypad with 4-digit display & status LEDs
- CE-compliant EMC filter for reduced electrical noise
- Compact design – DIN rail or panel mountable (IP20)
Technical Data
| Brand: | Allen-Bradley / Rockwell Automation |
| Model: | PowerFlex 4M 22F-D4P2N113 |
| Input: | 3-Phase, 380-480V AC, 3.5A |
| Output: | 3-Phase, 0-460V AC, 4.2A, 1.5kW (2 HP) |
| Control Signals: | 5x 24V DC inputs, 2x analog inputs, 2x relay outputs |
| Communication: | RS485 (Modbus RTU/DSI) |
| Operating Temp: | -40°C to 85°C (-40°F to 185°F) |
| Enclosure: | IP20 (Open frame) |
Installation & Compatibility
- Mounting: DIN rail or panel (6.85 x 36.94 x 5.35 inches)
- Compatible with 3-phase AC motors up to 2 HP
- Optional braking resistor support (no built-in IGBT)
- Works with DeviceNet, EtherNet/IP, PROFIBUS (via add-on modules)
Package & Warranty
- 12-month warranty from date of purchase
- Includes: Drive unit, fixed keypad, installation guide
- Shipping: FedEx, UPS, DHL (express options available)
Need more details? Download the full PowerFlex 4M manual here for wiring diagrams and advanced programming.
