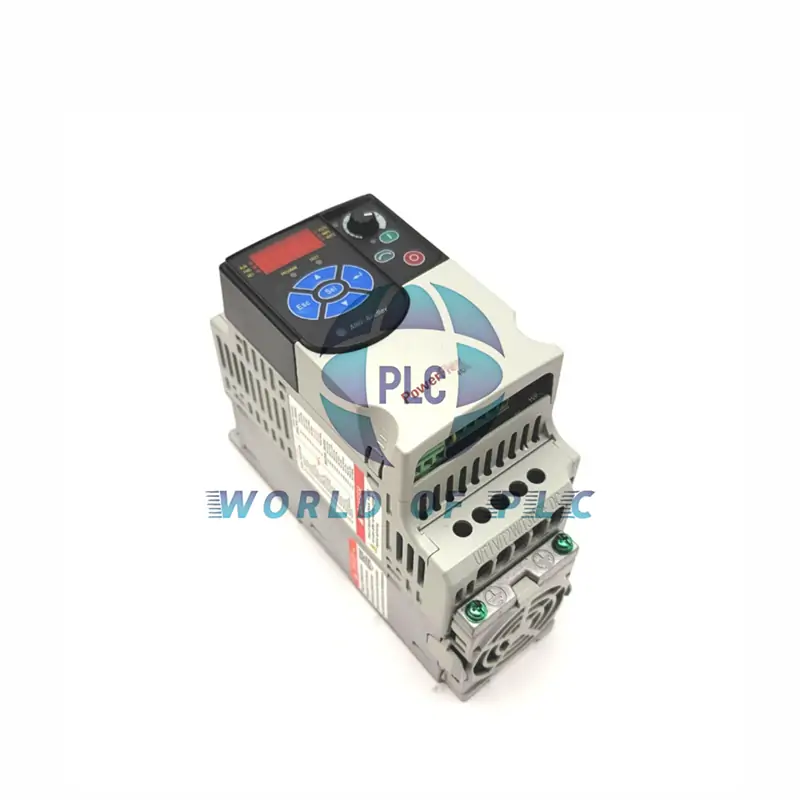

Allen-Bradley 22F-D024N104 PowerFlex 4M Drive – 15HP Industrial Powerhouse
The 22F-D024N104 delivers robust motor control for demanding applications with 11kW (15HP) output power and advanced networking capabilities.
Complete Technical Specs
- Model: 22F-D024N104
- Input: 380-480V AC, 3-phase, 7.5A
- Output: 0-460V AC, 24A, 11kW
- Mounting: Panel mount (1.9mm minimum thickness)
- Clearance: 76.2mm top/bottom for cooling
- Temperature: -40°C to +85°C operation
- Communication: RS485 + optional adapters
- Protection: IP20 (indoor use only)
Package & Support
- 12-month performance warranty
- Fast worldwide shipping via FedEx/UPS/DHL
- Typically ships within 1 business day
Expert Answers
- Q: Can this drive handle heavy loads?
A: Yes, designed for 15HP industrial applications. - Q: What communication options are available?
A: RS485 built-in, with optional EtherNet/IP, PROFIBUS etc. - Q: Is dynamic braking supported?
A: Yes, includes integrated braking resistor. - Q: What’s the minimum panel thickness?
A: 1.9mm (0.0747in) required. - Q: Can I stack multiple drives?
A: Yes, supports zero stacking installation.
Need wiring diagrams? Download full manual for installation and programming details.
