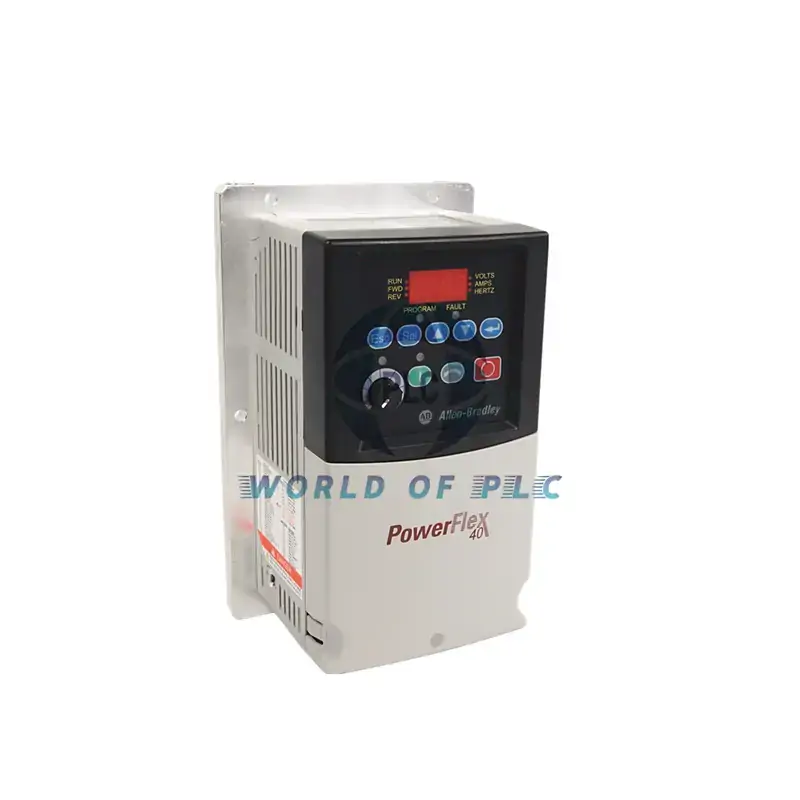

22B-E019H204 | Allen-Bradley PowerFlex 40P AC Drive

Allen-Bradley 22B-E019H204 PowerFlex 40 Drive – 15HP 600V VFD

High-Power Motor Control

• 15HP (11kW) heavy-duty industrial performance
• Handles 460-600V AC 3-phase power
• Robust 19A output for demanding applications
• Built-in RS485 communication
• Compact plate mount saves space

Key Specifications

• Model: 22B-E019H204 (PowerFlex 40 series)
• Frame Size: C (DIN rail mountable)
• Control: Sensorless Vector & V/Hz
• Display: 4-digit LED with 10 status LEDs
• Special Features: Auto-tune, dynamic braking
• Dimensions: Compact zero-stack design
• Protection: IP20 (IP30 optional)

Package & Support

• 12-month warranty
• Fast shipping via FedEx/UPS/DHL
• Ideal for conveyors, pumps, heavy machinery

Advanced Capabilities

• Zero stacking for space efficiency
• Optional network adapters (EtherNet/IP, PROFIBUS)
• Built-in PID controller
• Adjustable PWM frequency
• Removable keypad for remote mounting

Technical Questions

• What circuit protection is required?
  30A circuit breaker recommended.
• Can I use this for a hoist application?
  Yes, excellent for lifting with high starting torque.
• Does it support MODBUS protocol?
  Yes, via the RS485 interface.
• What’s the maximum ambient temperature?
  50°C (122°F) without derating.
• Can I add wireless communication?
  Yes, with optional DSI Wireless Interface Module.
