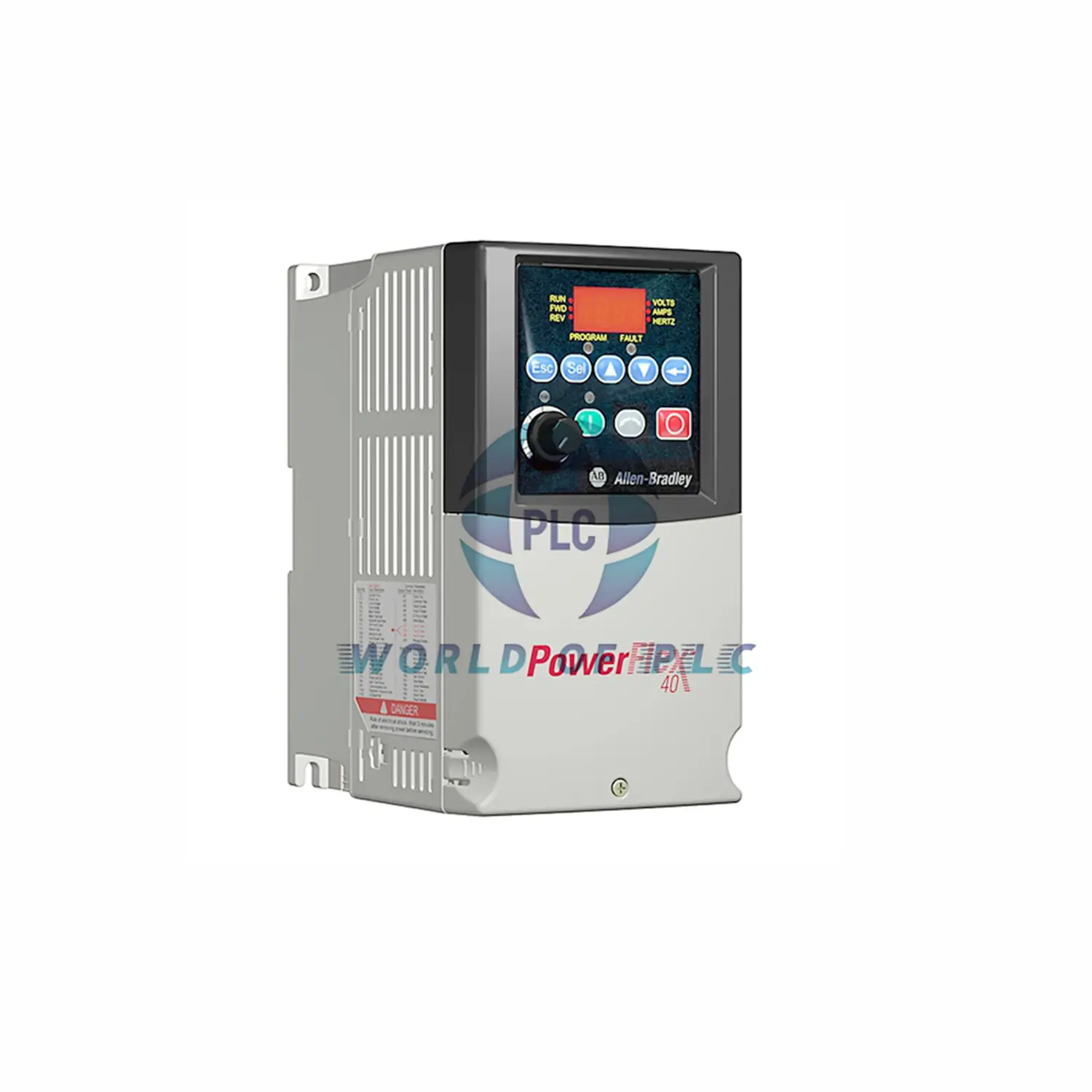

Allen-Bradley 22B-E012H204 PowerFlex 40 Drive – 10HP 600V VFD
High-Voltage Motor Control
- 10HP (7.5kW) industrial motor control
- Handles 600V AC 3-phase power systems
- Powerful 12A output current
- Built-in RS485 communication
- Space-saving plate mount design
Technical Specifications
- Model: 22B-E012H204 (PowerFlex 40 series)
- Input Range: 460-600V AC ±10%
- Control: Sensorless Vector & V/Hz
- Display: 4-digit LED with 10 indicators
- I/O: 7 digital inputs, 3 analog inputs
- Enclosure: IP20 (optional IP30 available)
- Special Features: Auto-tune, built-in brake
Package & Support
- 12-month warranty
- Fast shipping via FedEx/UPS/DHL
- Ideal for conveyors, fans, pumps
Advanced Features
- Zero stacking design saves space
- Optional network adapters available
- Built-in PID controller
- Adjustable PWM for quiet operation
Professional Questions
- What’s the minimum circuit protection needed?
20A circuit breaker recommended. - Can I mount this vertically?
Yes, all mounting orientations supported. - Does it include cooling fans?
No, designed for natural convection cooling. - What’s the RS485 cable length limit?
Up to 1200m with proper cabling. - Can I add Ethernet communication?
Yes, with optional EtherNet/IP adapter.
