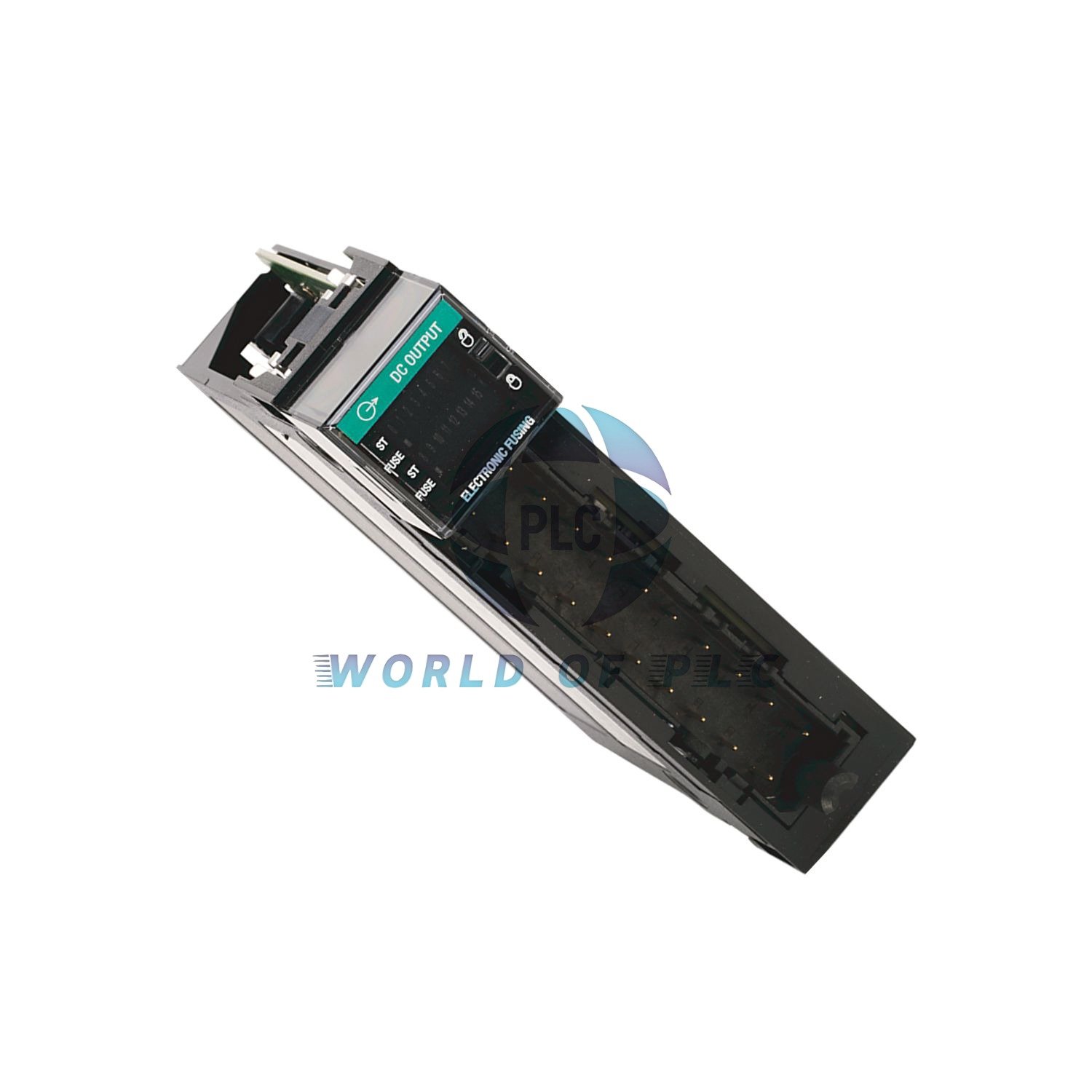

Allen-Bradley 1756-OB16EK – 16-Channel Fused DC Output Module
Key Benefits
- 16 protected outputs with electronic fusing
- Works with 10-31V DC systems
- Built-in output protection against overloads
- Fits all 1756 ControlLogix chassis
- Conformal coating for environmental protection
Technical Details
- Output Type: DC, electronically fused
- Voltage Range: 10-31.2V DC
- Current per Point: 1A @60°C
- Total Current: 8A @60°C
- Response Time: ≤2ms OFF to ON
- Power Use: 4.1W max
- Terminal Blocks: 1756-TBNH or 1756-TBSH
- Protection: Electronic fuse per channel
- Coating: Conformal for moisture resistance
Installation Guide
- Fits any 1756 chassis slot
- Use correct terminal block (TBNH or TBSH)
- Max temperature: 60°C
Get Full Documentation
Download complete specs for the 1756-OB16EK: Download Manual
Common Questions
- What does “electronically fused” mean?
Each output has automatic overload protection. - Can I use this with 24V systems?
Yes, works from 10V to 31.2V DC. - How does the module report faults?
Fault status appears in controller software. - Is this good for LED lighting?
Yes, ideal for lighting and small loads. - What’s the advantage of conformal coating?
Protects against dust and moisture.
Package Contents
- 1x 1756-OB16EK module
- Installation guide
Order Information
- 12-month product warranty
- Fast shipping with FedEx, UPS, or DHL
