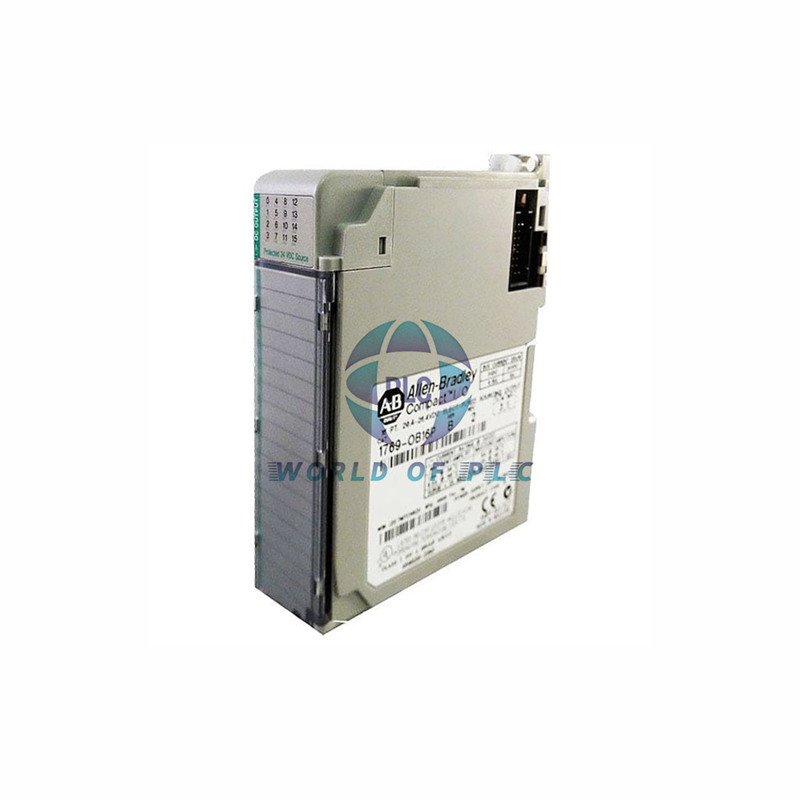

Allen-Bradley 1769-OB16P – High-Speed 16-Channel DC Output Module for CompactLogix
- Control more devices with 16 protected DC outputs
- Fast response – switches in just 1ms
- Works with CompactLogix & MicroLogix 1500 systems
- Get full specs: Download Manual
Key Features
The 1769-OB16P gives you 16 solid-state outputs in one compact module. Perfect for 24V DC automation tasks with fast 1ms switching.
Technical Details
- Brand: Allen-Bradley
- Model: 1769-OB16P (Series A/B)
- Outputs: 16 channels (1 group)
- Voltage: 20.4-26.4V DC
- Speed: ON in 1ms / OFF in 2ms
- Current: 0.5A per point @60°C
- Max Current: 8A total @30°C
- Surge Protection: 2A for 10ms
- Wire Size: 22-14 AWG
- Size: 4.65 x 1.38 x 3.43 in
- Weight: 0.56 lbs
Installation Notes
Place within 8 modules of power supply. Use with 1769-RTB18 terminal block.
Warranty & Shipping
- 12-month product warranty
- Fast shipping via FedEx, UPS, DHL
Expert FAQs
- Can I mix voltages? No – all 16 outputs share same voltage.
- What’s the max ambient temperature? 60°C (140°F) continuous.
- Does it need external fuses? No – built-in protection.
- Can I use it with 12V devices? No – minimum 20.4V required.
- How many modules per system? Up to 8 from power supply.
