Introduction

Welcome to PLCDCS HUB Limited’s technical guide! As a seasoned engineer in the industrial controls sector, I know how critical it is to choose the right components for your system. The Allen Bradley PowerFlex 40 drive is a powerful and versatile choice, but with so many options, picking the right one can feel daunting. This guide will help you navigate the choices so you can find the perfect drive for your needs.

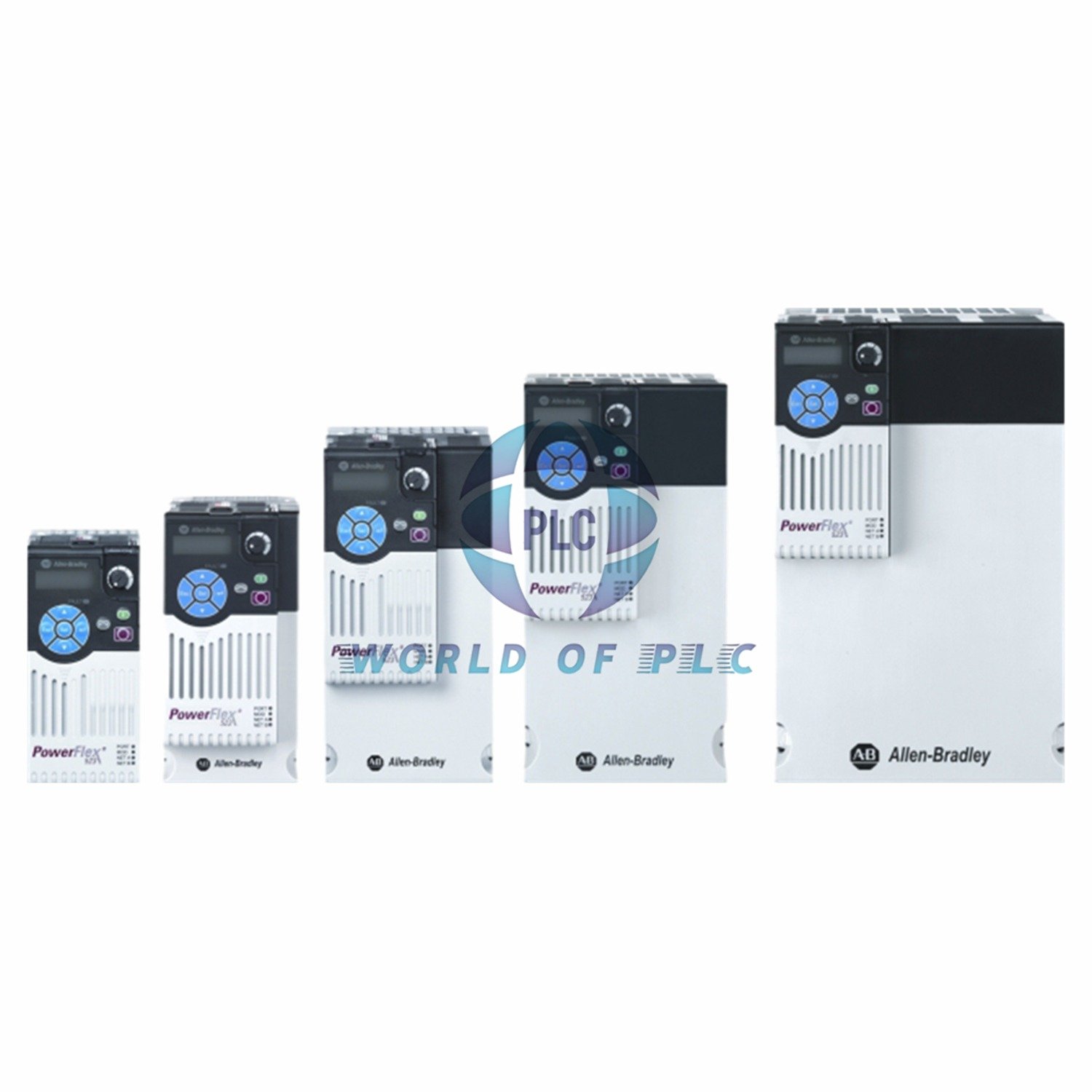

How to Choose the Right Allen Bradley PowerFlex 40 Drive

Understand Your Application’s Needs

Before you even look at a catalog, you need to understand your application. This is the most crucial step. Ask yourself these questions:

  • What is the motor’s horsepower and voltage? The drive’s horsepower and voltage must match your motor. For example, a 5 HP motor needs a 5 HP drive. Mismatched ratings can damage your equipment.
  • What is the load type? Is it a simple fan or a complex machine like a conveyor belt or a mixer? The load type influences the control method you’ll need.
  • What is the environment? Will the drive be in a clean, dry room, or a dusty, humid warehouse? PowerFlex 40 drives come with different enclosure ratings (like IP20 or IP66) to protect against various environmental conditions.

Key Features to Consider

Once you know your application’s needs, you can look at the features of the PowerFlex 40 drive.

Voltage and Horsepower

The first thing you’ll notice is the drive’s voltage and horsepower ratings. Allen Bradley offers PowerFlex 40 drives in several voltage classes:

  • 200-240V AC: For light industrial and commercial applications.
  • 380-480V AC: The most common choice for general industrial use.
  • 500-600V AC: For heavy-duty industrial applications.

Ensure the drive’s voltage matches your power supply. The horsepower rating should always be equal to or greater than your motor’s rating.

Control Methods

The PowerFlex 40 offers a few control methods. The most common are:

  • Volts per Hertz (V/Hz): A simple and reliable method suitable for basic applications like fans and pumps. It’s easy to set up and very effective for constant torque loads.
  • Sensorless Vector Control: This advanced method offers better speed regulation and torque control, especially at lower speeds. It’s a great choice for applications that require more precision, like conveyor systems.

My unique insight here is that for most common industrial tasks, a simple V/Hz control is more than sufficient and can save you money and setup time. Don’t overbuy features you won’t use.

I/O and Communication

The PowerFlex 40 has built-in I/O (Input/Output) for simple control. However, if you need to integrate the drive into a larger system, you’ll want to consider the communication options. PowerFlex 40 drives can be equipped with communication cards for networks like:

  • EtherNet/IP
  • DeviceNet
  • ControlNet

Choosing a drive with the right communication protocol is essential for seamless integration with your PLC and HMI systems.

allen bradley Kinetix 6000

Final Recommendations

In conclusion, choosing the right Allen Bradley PowerFlex 40 drive is a matter of matching the drive’s capabilities to your application’s specific needs. Start with your motor’s voltage and horsepower, then consider the load type, control method, and communication requirements.

For example, if you are controlling a small water pump, a 2 HP, 480V drive with V/Hz control is likely all you need. If you’re building a new conveyor system, a 5 HP, 480V drive with Sensorless Vector Control and an EtherNet/IP card would be a more suitable and forward-looking choice.

This knowledge is just the beginning. We have a full range of Allen Bradley PowerFlex 40 drives available. Our team at World of PLC Limited can help you with specific model numbers and technical details.

Ready to find your perfect drive? Click here to browse our full selection of Allen Bradley PowerFlex 40 drives and get started on your project today!
